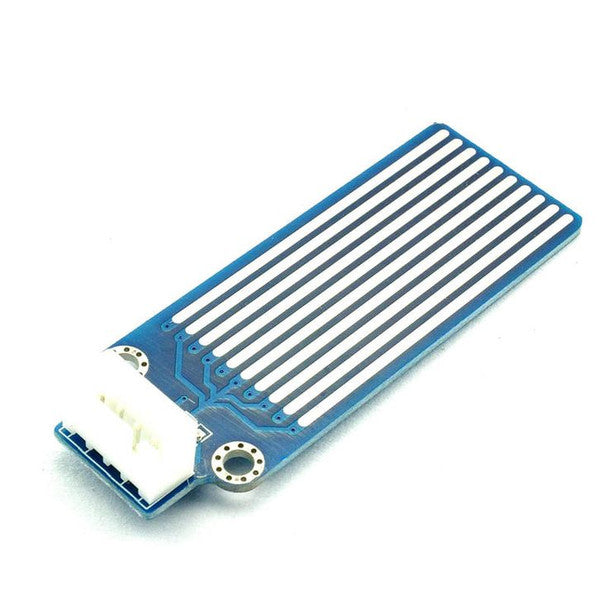

Rain/Water level sensor with JST interface

Parallel Conductive Trace Array: Features an array of exposed parallel trace lines that measure resistance drops when bridged by liquid droplets or changing water submersion levels.

JST-Style Connector Interface: Equipped with a pre-mounted JST-style plug interface for secure, plug-and-play connections that eliminate loose jumper wiring.

Continuous Analog Level Telemetry: Outputs a clean, linear analog voltage signal proportional to the surface coverage of rainfall or liquid immersion depth.

Low Power Draw & Wide Input Support: Operates reliably across standard 3.3V - 5V DC logic power rails, making it fully compatible with ESP32, Arduino, and Raspberry Pi platforms.

Compact Submersible Probe Form Factor: Designed on a slim, lightweight breakout PCB that fits easily into narrow liquid reservoirs, drainage channels, and weather monitoring enclosures.

Board Material: High-grade FR-4 glass-epoxy PCB with tin-plated trace arrays and pre-soldered JST connector.

Technical Specifications:

Sensor Type: Analog Rain/Water Level Breakout Board.

Operating Supply Voltage: 3.3V – 5.0V DC.

Signal Output: Analog Voltage Output.

Interface Type: JST Connector.

Board Color: Blue PCB with White Silkscreen & Silver Traces.

Usage Advice: Connect to your microcontroller via a compatible JST interface cable; measure the analog output pin to log continuous depth readings or calibrate rain detection thresholds.

Maintenance: Keep the upper JST connection header clean and dry; gently wipe off mineral scale or debris buildup from the exposed copper trace area using isopropyl alcohol

Essential Plug-and-Play Fluid Sensor: Position as a versatile liquid-level and precipitation sensor for STEM educational kits, automated plant watering systems, and smart home leak alarms.

Highlight JST Interface Reliability: Emphasize how the secure JST header prevents accidental wire disconnections during prototype testing and outdoor field deployments.

Recommended Cross-Sell Add-ons: Pair with ACEBOTT Water Level Sensor Droplet Detection Module Easy-Plug Compatible with ESP32/Arduino, ACEBOTT Raindrop Sensor /Vapor Sensor Steam Sensor Easy-Plug Compatible with ESP32/Arduino, Rain High Sensitive Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Rain Sensors and Water Quality Sensors collection pages as your standard JST-interface water level module.
