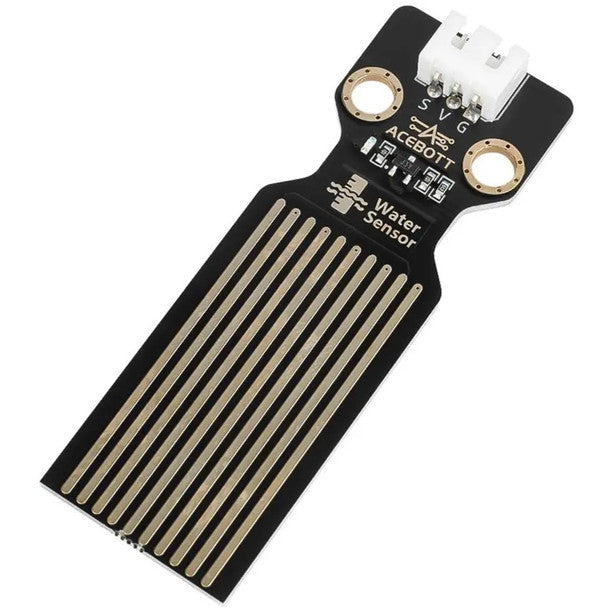

ACEBOTT Water Level Sensor Droplet Detection Module Easy-Plug Compatible with ESP32/Arduino

Parallel Wire Resistance Telemetry: Utilizes a array of exposed trace lines to measure electrical resistance variations caused by droplet contact and liquid submersion depth.

Easy-Plug Anti-Reverse Interface: Features an integrated Easy-Plug connector to ensure fool-proof wiring connections with ESP32 and Arduino development shields.

Analog Depth & Droplet Telemetry: Converts water immersion height directly into continuous analog voltage signals for linear level logging and threshold monitoring.

Low Power Consumption: Operates efficiently on standard microcontroller power rails (3.3V - 5V), making it suitable for battery-powered environmental monitoring nodes.

Compact Submersible Trace Probe: Designed with a slim, durable PCB footprint that easily slips into narrow liquid containers, rain catchers, and sump pits.

Board Material: High-grade FR-4 glass-epoxy PCB with exposed tin-plated trace arrays and Easy-Plug interface connector.

Technical Specifications:

Brand/Series: ACEBOTT Easy-Plug Series.

Operating Voltage: 3.3V – 5.0V DC.

Signal Output: Analog Voltage Output.

Interface Type: Easy-Plug (RJ11-style / JST connector).

Board Color: Black PCB with White Silkscreen & Silver Traces.

Usage Advice: Connect using an Easy-Plug cable to your expansion board; read the analog pin value to track liquid height or raindrop presence in your code.

Maintenance: Keep the upper connector housing and cable dry; clean the trace area gently with isopropyl alcohol if mineral residue or dirt builds up on the copper lines.

Essential Educational & IoT Water Sensor: Position as a user-friendly, beginner-safe module for STEM classroom kits, automated plant irrigation systems, and smart home leak alarms.

Highlight Easy-Plug Simplicity: Emphasize how the plug-and-play Easy-Plug header eliminates loose jumper cables and prevents short circuits for fast setup with ESP32 and Arduino boards.

Recommended Cross-Sell Add-ons: Pair with ACEBOTT Raindrop Sensor /Vapor Sensor Steam Sensor Easy-Plug Compatible with ESP32/Arduino, Rain/Water level sensor with JST interface, Rain High Sensitive Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Rain Sensors and Water Quality Sensors collection pages as your primary plug-and-play water level module.
