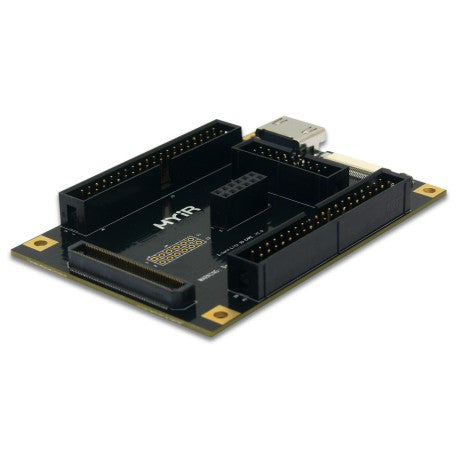

Z-turn Lite IO Cape

Tailored for MYIR Z-turn Lite Boards: Custom-designed expansion cape that connects seamlessly via the high-density rear connector of the Z-turn Lite single board computer (XC7Z007S / XC7Z010).

High-Definition Video Output: Integrated HDMI interface supporting 720p/1080p video output to easily connect external monitors and digital displays.

Dual 40-Pin Expansion Headers: Features two 2.54mm pitch 2 x 20-pin expansion connectors (J3 & J8) for bringing out user GPIOs, FPGA signals, and custom peripheral interfaces.

Dedicated Display & Camera Support: Includes an onboard 0.5mm pitch 50-pin LCD interface (compatible with MYIR 7-inch capacitive touch modules) and dedicated camera connectors (30-pin FPC / 2 x 9-pin header).

Dual Pmod Peripheral Compatibility: Equipped with standard Pmod expansion headers (2 x 6 -pin) to quickly daisy-chain third-party sensor, communication, and actuation modules.

Module Construction: Built on a multi-layer FR-4 glass epoxy printed circuit board featuring gold-plated connectors, precision surface-mount components, and standard mounting holes (91 x 63 mm).

Operating Voltage & Logic: Driven by 5V DC and 3.3V power rails directly supplied through the host Z-turn Lite board connection.

Handling Precautions: Observe strict electrostatic discharge (ESD) safety practices when mounting. Ensure the multi-pin connector is properly aligned before pressing boards together.

Environmental Limits: Commercial operating temperature range spans 0°C to +70°C. Keep protected from static discharge, conductive metal dust, and direct liquid moisture.

Essential Evaluation Companion: Position as a must-have expansion board for developers looking to unlock video output, camera input, and external IO on the Z-turn Lite board.

Complete Hardware Testbed: Highlight its ability to transform compact FPGA/SoC boards into full-featured multimedia platforms, machine vision nodes, or embedded Linux workstations.

Recommended Cross-Sell Add-ons: Pair with Z-turn Lite SBCs, MYIR 7-Inch Capacitive Touchscreen Displays, Pmod Sensor Modules, and Micro-HDMI / Standard HDMI Cables.

Rapid FPGA & Linux Prototyping: Ideal for engineering teams developing embedded vision systems, industrial control panels, edge AI models, and custom SoC evaluation rigs.
