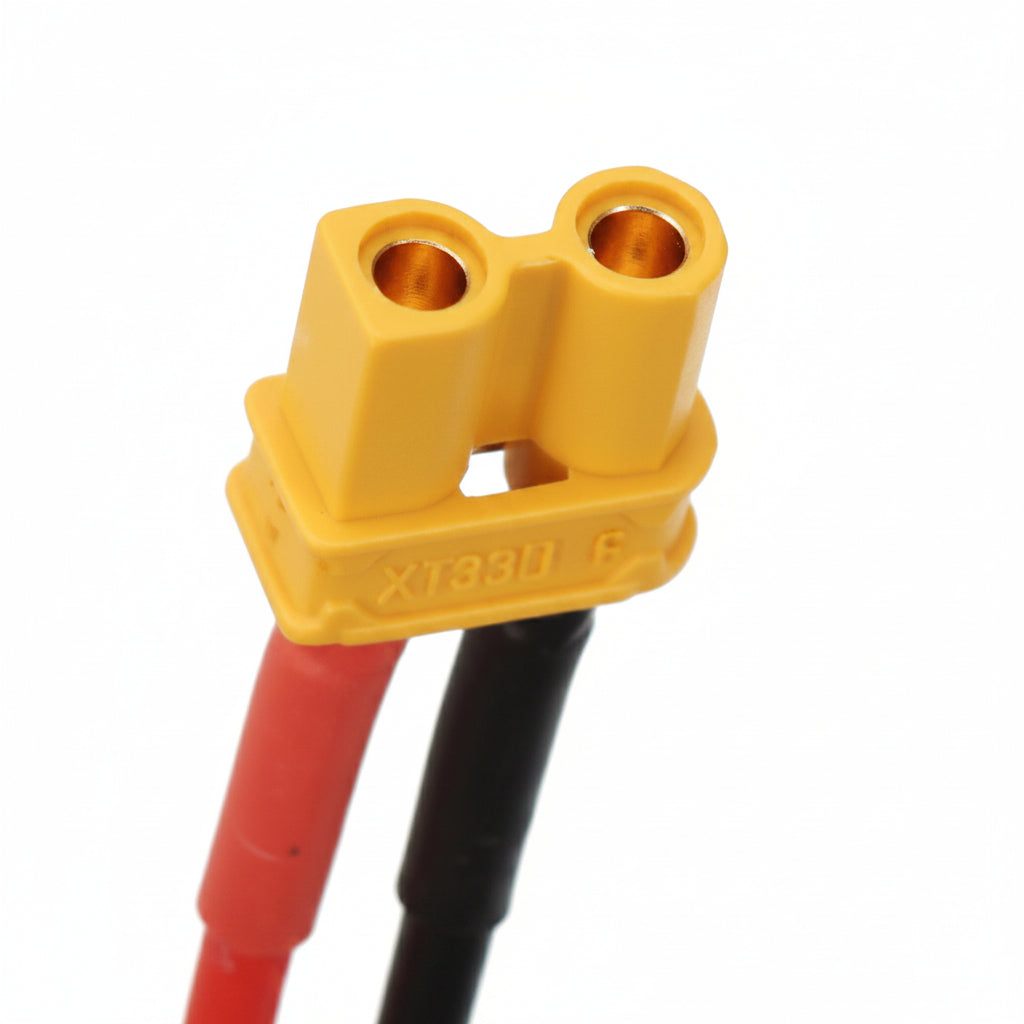

XT30U XT30 Female Connector with 10cm 16AWG

Pre-Soldered 16AWG Lead Cable: Factory pre-wired with a 10cm flexible 16AWG multi-strand silicone wire harness, eliminating the need to solder wires onto small connector terminals.

Gold-Plated Internal Female Sockets: High-conductivity gold-plated brass sockets ensure ultra-low contact resistance, maximum power delivery, and resistance to pin surface oxidation.

High-Temperature Flame-Retardant Nylon: Molded from heat-resistant polyamide nylon (UL94V-0 rated) that maintains structural integrity under high continuous current and thermal stress.

Compact & Lightweight Profile: Space-saving footprint designed specifically for micro FPV quadcopters, mini drones, and lightweight RC battery connections.

Polarized Reverse Protection: Asymmetrical keyed housing geometry prevents reverse-polarity connection, safeguarding batteries, flight controllers, and ESCs against accidental shorts.

Pre-Tinned Wire Ends: Stripped wire ends come pre-tinned for immediate, hassle-free soldering directly to PCB pads, power distribution boards, or battery terminals.

Housing Material: Flame-retardant polyamide nylon.

Contact Material: Gold-plated brass alloy.

Wire Material: High-flex silicone-insulated 16AWG copper wire.

Technical Specifications:

Connector Model: XT30U Female (Upgraded XT30).

Lead Length: 10cm (3.9'').

Wire Gauge: 16AWG Silicone Wire.

Current Handling: $15\text{A}$ Continuous / $30\text{A}$ Peak.

Color: Industrial Yellow (Housing) with Red/Black Wires.

Usage Advice: Verify polarity (red lead to positive, black lead to negative) prior to soldering. Use heat shrink tubing over solder joint pads for added protection against accidental shorts.

Maintenance: Keep female contacts clean of dirt, metal shavings, or solder flux; wipe occasionally with isopropyl alcohol.

Essential Power Input Pigtail: Position as a ready-to-solder female power lead for micro FPV drones, custom 2S–4S LiPo battery packs, compact ESC inputs, and DIY robotics builds.

Highlight Factory Pre-Soldered Quality: Emphasize how the pre-attached 16AWG silicone wire saves time on the workbench and eliminates tricky soldering in tight spaces.

Recommended Cross-Sell Add-ons: Pair with XT30U XT30 Male Connector with 10cm 16AWG, XT30-U XT30 Bullet Connector Pair, Male XT60 to 4.0mm Banana Plug, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Essential: Display prominently on your SafeConnect Battery Harness collection page under pre-wired power leads.
