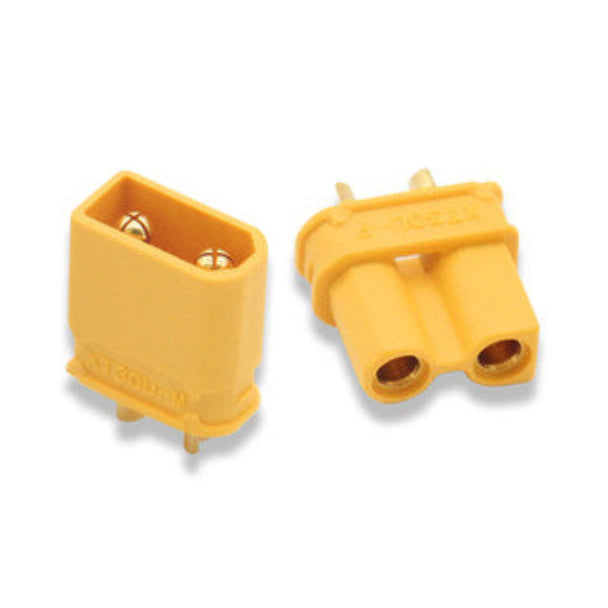

XT30-U XT30 Bullet Connector Pair

High-Temp Flame-Retardant Nylon Housing: Molded from heat-resistant nylon (UL94V-0 rated) that maintains physical integrity under high solder temperatures and continuous current draws.

Gold-Plated Brass Contacts: Solid gold-plated copper internal bullet pins minimize electrical resistance, prevent contact oxidation, and ensure maximum power transfer efficiency.

30A Peak Current Capacity: Capable of handling up to $15\text{A}$ continuous ($30\text{A}$ instantaneous peak) current draw without thermal breakdown or voltage drop.

Compact Lightweight Profile: Micro-sized footprint designed specifically for space- and weight-sensitive builds, such as micro FPV drones, mini quads, and small RC aircraft.

Polarized Anti-Reverse Keyway: Features an asymmetrical housing geometry to prevent reverse-polarity connection, protecting sensitive flight controllers and ESCs from short circuits.

Integrated Solder Cup Terminal Shrouds: Half-open soldering cups simplify wire attachment while outer nylon shrouds shield solder joints, reducing the need for heavy heat-shrink tubing.

Housing Material: Flame-retardant polyamide nylon.

Contact Material: Gold-plated brass alloy.

Technical Specifications:

Model: XT30-U (Upgraded XT30).

Gender: Matched Male & Female Pair.

Current Rating: 15A Continuous / 30A Peak.

Wire Compatibility: Up to 16AWG-20AWG silicone wire.

Color: Industrial Yellow.

Usage Advice: Heat solder cups directly with a fine-tip soldering iron, apply solder, and slip pre-tinned wire into the well. Ensure proper polarity (+ positive / - negative markings) before soldering.

Maintenance: Keep contact points clean of excess soldering flux; wipe clean with isopropyl alcohol to maintain peak electrical connection.

Essential Power Connection for Lightweight Builds: Position as the ultimate low-resistance power plug for 1S–4S micro FPV drones, small brushless power trains, custom battery packs, and compact robotics.

Highlight Polarity Safety & High Conductivity: Emphasize how the keyed housing prevents accidental reverse wiring while gold-plated contacts ensure max motor output and flight efficiency.

Recommended Cross-Sell Add-ons: Pair with 2.0mm Gold Plated Bullet Connector Male-Female Pair, XT60 Bullet Connector Pair, XT60 Female to T Dean Male Plug, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Drone and Battery Connectors collection page under high-efficiency DC power plugs.
