Xilinx USB FPGA / CPLD XC2C64A Programmer

Xilinx FPGA & CPLD Hardware Download Support: High-speed USB-to-JTAG download platform designed for in-circuit programming, configuring, and debugging Xilinx FPGAs (Spartan, Vertex, Artix, Kintex), CPLDs (CoolRunner-II XC2C64A, XC9500), and PROM configuration devices.

JTAG & Slave Serial Protocol Compatibility: Supports standard JTAG, Slave Serial, and SPI programming modes for flexible target hardware configuration and boundary-scan testing.

ISE Design Suite & Vivado IDE Integration: Native plug-and-play integration with Xilinx ISE Design Suite, Vivado Design Suite, Impact, and ChipScope Pro embedded logic analyzer software.

Auto-Sensing Target I/O Voltage: Automatically adapts communication logic levels to match target board signal voltages ranging from 1.5V to 5.0V DC.

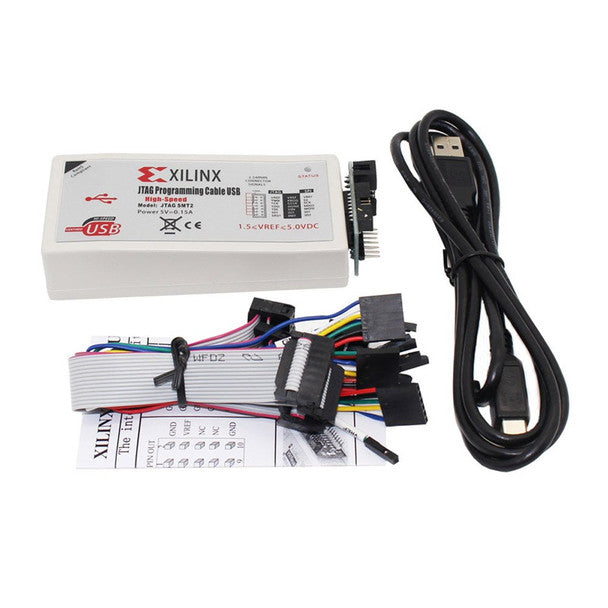

Complete Interface Cable Assembly: Includes standard multi-pin target flying-lead ribbon cables and USB connection cable for instant, versatile target header pin connections.

Module Construction: Encased in a lightweight, durable ABS plastic shell featuring status LEDs and a high-retention USB interface port.

Operating Voltage & Power: Powered directly through host computer USB (5V DC). Does not draw operating power from the target system board.

Handling Precautions: Verify pin alignments (V_REF, GND, TCK, TMS, TDI, TDO) before applying power to target boards. Observe proper ESD precautions during setup.

Environmental Limits: Operating temperature range spans -10°C to +60°C. Keep protected from static discharge, conductive metal dust, and liquid moisture.

Essential Workbench Companion for Xilinx Developers: Position as a reliable, cost-effective programming tool for embedded engineers, hardware developers, and university students building Xilinx-based digital logic circuits.

Fast In-Circuit Debugging & Logic Analysis: Highlight its ChipScope Pro support for real-time internal signal inspection and rapid hardware debugging.

Recommended Cross-Sell Add-ons: Pair with Xilinx CPLD Development Boards, Breadboard Jumper Wires, 10-Pin Ribbon Cables, and Logic Level Converters.

Ideal for Academic & Industrial Development: Must-have download tool for university digital design labs, custom logic synthesis prototyping, and field firmware deployment.
