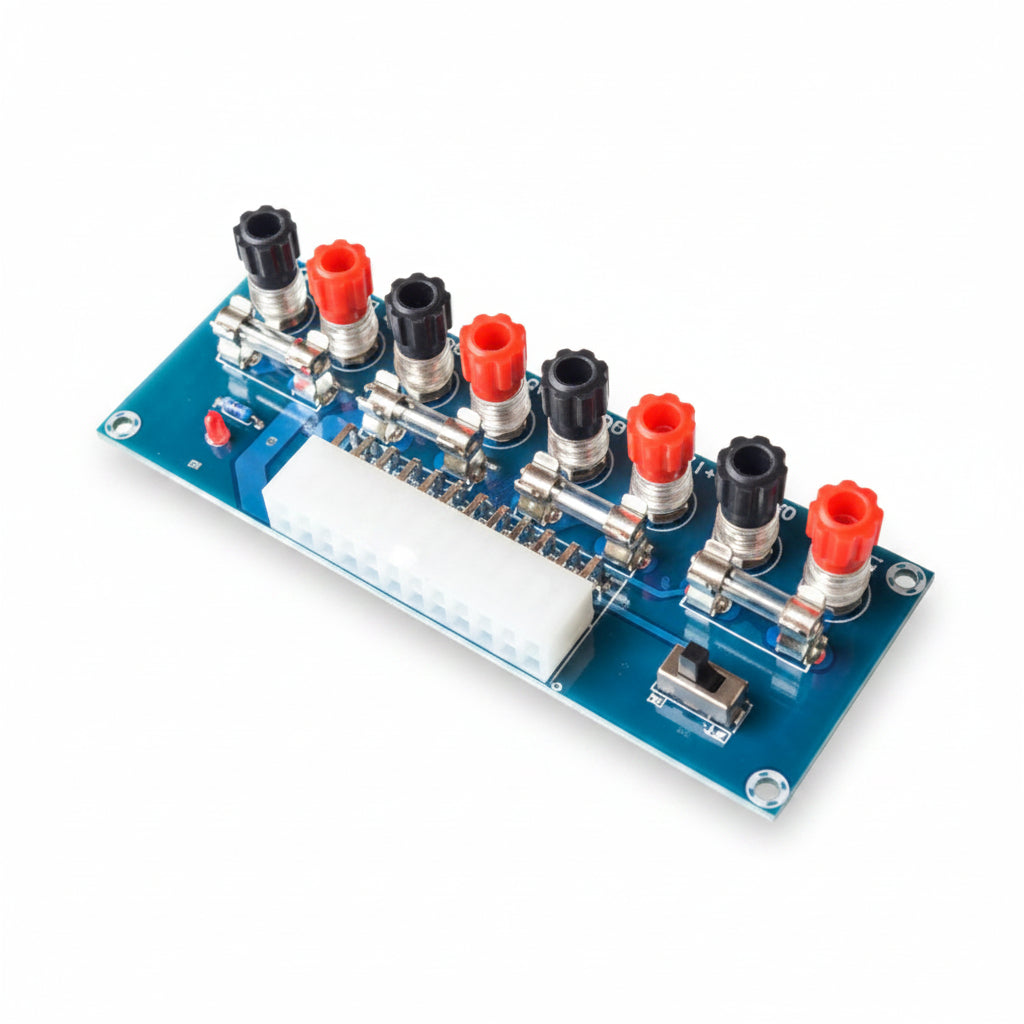

XH-VM229 Power ATX Transfer Power Supply Module 24 Pin

Standard 24-Pin ATX Compatibility: Converts standard desktop PC power supplies (24-pin and backward compatible 20-pin ATX connectors) into a multi-rail benchtop DC power source.

4-Channel DC Voltage Rail Output: Provides simultaneous access to standard PC voltage rails: +12V, -12V, +5V, and +3.3V DC, complete with dedicated terminal blocks.

Binding Post & Banana Jack Outputs: Features heavy-duty 4mm binding post connectors compatible with standard multimeter banana plugs, alligator clips, and stripped wire leads.

Onboard Power Toggle Switch: Integrated physical toggle switch controls the ATX supply's $\text{PS-ON}$ line to easily turn connected power units on and off without unplugging mains power.

Individual Current Fusing: Each voltage output channel is guarded by an individual replaceable glass fuse to protect connected benchtop circuits from over-current damage.

Power Output Indicator: Built-in LED status light provides instant visual confirmation when the ATX supply is active and outputs are energized.

Housing & PCB Construction: Open-frame rigid FR4 fiberglass circuit board with heavy copper traces for high current carrying capacity.

Contact & Terminal Style: 24-Pin male ATX socket input; 4 pairs of screw-down 4mm binding post / banana jack output terminals.

Technical Specifications:

Model: XH-VM229.

Input Connector: Standard 20 / 24-Pin ATX Power Supply Connector.

Output Voltages: +3.3V, +5V, +12V, -12V DC.

Circuit Protection: Fuse protected on each voltage channel.

Switching Control: Onboard PS-ON toggle switch.

Color: Blue PCB with red/black output terminals.

Usage Advice: Ensure total current load across each channel does not exceed the rated capacity of the individual fuse or the connected ATX power supply.

Maintenance: Keep board surfaces free of conductive debris and metallic dust. Consider housing in a protective acrylic case for safety during active bench testing.
