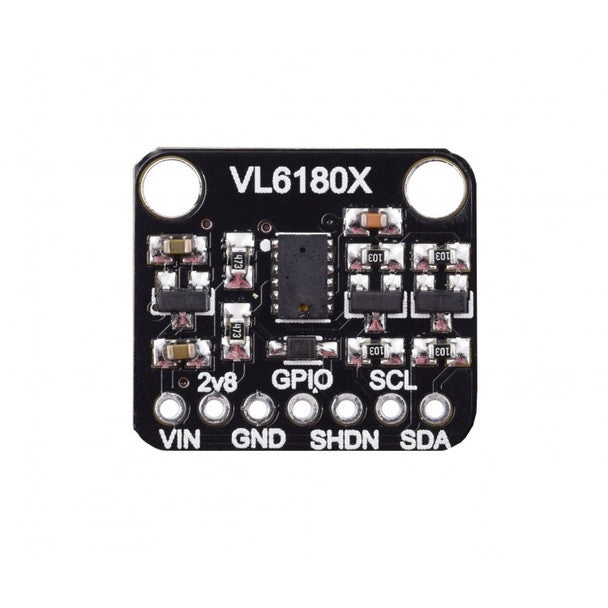

VL6180X TOF Distance Sensor (5-100MM)

Integrated FlightSense ToF Architecture: Combines an 850nm VCSEL laser emitter, ambient light sensor (ALS), and Time-of-Flight rangefinder into a single compact module.

Short-Range High-Precision Telemetry: Accurately measures absolute distances from 5 mm to 100 mm (extensible up to 200 mm in dark environments) independent of target reflectance.

Integrated Ambient Light Sensing (ALS): Provides high-dynamic-range ambient light measurements from 1 Lux up to 100 kLux for automated display backlight or lux metering applications.

Standard I2C Bus Output: Features a fast I²C digital interface (400 kHz) with programmable interrupt thresholds for fast distance and lux threshold triggers.

Onboard Power Regulation & Logic Shifting: Built-in 2.8V voltage regulator and level-shifting circuitry allow direct 3.3V to 5.0Vmicrocontroller power and communication.

Housing & Board Material: High-grade FR-4 glass-epoxy PCB with surface-mount VL6180X optical sensor chip, passive components, and gold-plated terminal header pins.

Technical Specifications:

Operating Voltage (V_CC): 3.0V - 5.0V DC.

Distance Measurement Range: 5 mm - 100 mm (up to 200 mm depending on ambient light).

Emitter Wavelength: 850 nm Infrared VCSEL.

Communication Protocol: I²C (SCL, SDA) + GPIO/Interrupt output.

Color: Purple/Black PCB with Optical Window and Silver Pins.

Usage Advice: Remove any protective protective optical film before powering on; connect V_IN, GND, SCL, and SDA to your microcontroller I²C pins.

Maintenance: Handle with static precautions; keep the optical sensor lens clean and free of fingerprints, dust, or solder flux by gently wiping with a microfiber swab.

Essential Precise Close-Range Distance & Lux Sensor: Position as an ideal optical sensor for precision robotics edge detection, gesture sensing, liquid level sensing, and automated display brightness control.

Highlight Combined ToF & Lux Capabilities: Emphasize how integrating true distance mapping alongside ambient light detection into one sensor saves PCB space and GPIO pins.

Recommended Cross-Sell Add-ons: Pair with VL53L1X ToF Laser Ranging Sensor (4CM- 400CM, I2C), 940nm GY-VL53L1X 400cm Laser Ranging Sensor, GY-53-L1X Laser Ranging VL53L1X TOF Flight Time Ranging Sensor Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Laser Distance Sensors collection page as your short-range 5-100mm ToF distance breakout.
