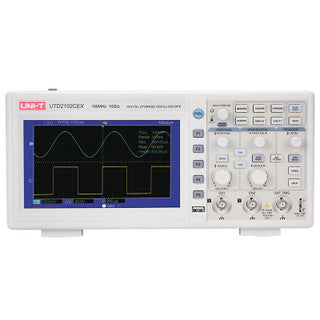

UTD2102CEX+ 2 Channels Digital Storage Oscilloscope

100MHz Dual-Channel Bandwidth: Provides two independent analog channels featuring a 100MHz bandwidth ceiling for dynamic signal diagnostics across analog circuits, digital logic, and power electronics.

1GSa/s High-Speed Real-Time Sampling: High-performance sampling engine delivers up to 1 GSa/s real-time sampling rate and a deep 64kpts memory depth to capture fine transient waveform details.

7-Inch High-Definition TFT LCD Display: Large 7-inch widescreen color LCD (800 X 480 resolution) displays clear dual-channel traces, multi-parameter statistics, and intuitive menu structures.

Versatile Hardware Trigger Modes: Supports Edge, Pulse Width, Video, Slope, and Alternate trigger conditions alongside hardware frequency counter tracking.

34 Automatic Waveform Measurements: Performs automatic real-time parameter readouts including peak-to-peak voltage (V_pp), RMS voltage, frequency, period, rise/fall times, and duty cycle.

USB Host & Device Connectivity: Equipped with a front panel USB host port for instant bitmap image and waveform dataset export, plus a rear USB device port for PC software remote control.

Housing & Interface Hardware: Industrial-grade ABS benchtop casing with protective non-slip base feet, multi-function rotary encoders, tactile pushbuttons, and solid nickel-plated BNC input terminals.

Technical Specifications:

Analog Bandwidth: 100 MHz (2 Channels).

Real-Time Sampling Rate: 1GSa/s.

Memory Depth: 64kpts.

Vertical Sensitivity: 1mV/div - 20V/div.

Input Impedance: 1 M ohms -+ 2% in parallel with 21pF -+ 3pF.

Power Supply: Universal mains power input (100 - 240V AC, 45 - 440Hz).

Usage & Setup Advice: Align your physical probe attenuation switch (1X/10X) with the selected attenuation multiplier in the oscilloscope menu prior to measuring high-voltage signals.

Maintenance & Cleaning: Keep ventilation slots clear of dust and obstruction. Clean the screen and outer casing using a soft, dry microfiber cloth.

Essential High-Performance Bench Workhorse: Position as a premier benchmark digital storage oscilloscope for industrial repair workshops, electronics R&D labs, engineering classrooms, and advanced hardware developers.

Highlight UNI-T Precision Engineering & 100MHz Bandwidth: Emphasize the trusted UNI-T brand reliability, 100MHz bandwidth capability, and high 1 GSa/s sampling rate as key selling points for precision circuit troubleshooting.

Recommended Cross-Sell Add-ons: Pair with P6100 DC-100MHz Passive Oscilloscope Probe, 1M BNC male to Dual crocodile clamp, Oscilloscope test cable, 1Hz-60MHz Frequency 200MSa/s 2 channel DDS Function Generator, and FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator.

Flagship Benchtop Highlight: Feature prominently at the top of your Oscilloscopes & Generators collection as a flagship dual-channel digital storage oscilloscope.
