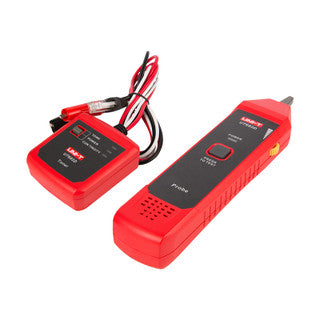

UT682D Wire Tracker (Telephone, Twisted Pair & Electrical wire)

Multi-Wire Tracing & Identification: Efficiently traces and locates telephone lines (RJ11), network twisted-pair cabling, and unenergized electrical wiring without damaging cable insulation.

Non-Contact Signal Sensing: Probe receiver detects transmitted signal audio through wall cavities, conduits, and cable bundles for quick wire identification.

Continuous & Polarity Diagnostics: Features integrated continuity testing and phone line polarity checking (DC 5V - 52V) to inspect line conditions.

Sensitivity & Volume Control Dial: Ergonomic volume/sensitivity control wheel on the receiver allows precise signal tuning in electrically noisy environments.

Extended Signal Transmission Range: High-frequency audio signal pulse capable of tracing long cable runs up to 3000m (9842ft).

Earphone Port & Visual LED Alerts: Includes a 3.5mm earphone jack for noise-isolated wire tracing in loud environments alongside visual signal LED indicators.

Housing & Terminal Accessories: High-impact, insulated ABS plastic casing for both transmitter and receiver units, equipped with built-in alligator clip lead sets and RJ11 connector cable.

Technical Specifications:

Supported Lines: RJ11 (Telephone Cables), Twisted Pair (LAN Cables), and De-energized Electrical Wires.

Tracing Signal Range: > 3000m.

Phone Line Polarity Voltage Range: DC 5V - 52V.

Transmitter Signal Output: > 10V p-p.

Power Supply: Transmitting unit (1 x 9V battery), Receiving unit (1 x 9V battery).

Usage & Safety Instructions: Intended for low-voltage signal tracing and testing. Do not connect to live mains AC electrical circuits.

Maintenance & Cleaning: Keep input ports clean and dry. Clean outer casing using a soft, dry microfiber cloth; remove 9V batteries when storing for extended periods.

Essential Line Finder for Cabling Techs: Position as an accessible, cost-effective wire location set for telecom installers, network cabling contractors, maintenance electricians, and home audio/video technicians.

Highlight Non-Contact Tracing & Long-Range Performance: Emphasize its non-contact tracing head and 3000m tracing range as key productivity features when identifying buried or bundled lines.

Recommended Cross-Sell Add-ons: Pair with UT682 Wire Tracker (Telephone, Twisted Pair & Electrical wire), UNI-T UT 511 Insulation Resistance Tester (100V - 1000V), Uni-T UT07 Socket Tester, and DL8003 12-240V AC.DC digital test pen.

Core Cabling Diagnostic Star: Display prominently as a key telecom and wire identification tool in your Other Measuring Instruments collection.
