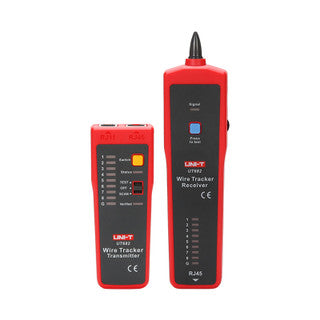

UT682 Wire Tracker (Telephone, Twisted Pair & Electrical wire)

Multi-Cable Tracing & Identification: Rapidly tracks and identifies telephone cables (RJ11), network twisted-pair cables (RJ45), and unenergized electrical wires across complex conduit bundles.

Network Cable Sequence & Line Status Testing: Verifies Ethernet pinout wire mapping to detect short circuits, open circuits, crossed pairs, and reversed wiring configurations.

Adjustable Sensitivity & Audio Volume: Receiver unit features an adjustable volume control dial to fine-tune signal tracing sensitivity in noisy electrical environments.

Telephone Line Condition Auditing: Easily tests DC level and polarity on active analog telephone lines (DC 3V - 60V) alongside clear line status checking.

Extended Tracing Distance: Transmitter sends robust high-frequency signal pulses capable of tracing wire runs up to 3000m (9842ft).

Built-In Earphone Port & Visual Indicators: Receiver includes a standard 3.5mm headphone jack for quiet signal tracking alongside multi-stage LED signal strength indicators.

Housing & Connector Hardware: Impact-resistant ABS plastic casing for transmitter and receiver units, equipped with insulated RJ11/RJ45 test leads and heavy-duty alligator clip adapters.

Technical Specifications:

Supported Cable Types: RJ45 (LAN/Ethernet), RJ11 (Telephone), Coaxial, and De-energized Electrical Wires.

Maximum Tracing Distance: >3000m.

Telephone Line Polarity Check: DC 3V - 60V.

Transmitter Output Voltage: > 10V p-p.

Power Supply: Transmitting unit (1 x 9V battery), Receiving unit (1 x 9V battery).

Usage & Safety Instructions: Designed for low-voltage signal tracing. Do not connect to live high-voltage AC mains circuits.

Maintenance & Cleaning: Keep input jack ports dry and clean. Wipe outer casings using a soft, dry microfiber cloth; remove 9V batteries when stored long-term.

Essential Line Tracing Tool for Network & Telecom Techs: Position as a versatile wire finder for network installers, telecom engineers, structured cabling technicians, and maintenance electricians.

Highlight Dual RJ45/RJ11 & Electrical Wire Versatility: Emphasize its ability to trace both network data cables and electrical wiring without needing separate tracing tools.

Recommended Cross-Sell Add-ons: Pair with UT682D Wire Tracker (Telephone, Twisted Pair & Electrical wire), UNI-T UT 511 Insulation Resistance Tester (100V - 1000V), Uni-T UT07 Socket Tester, and DL8003 12-240V AC.DC digital test pen.

Flagship Cable Tracing Star: Feature as a featured networking diagnostic tool in your Other Measuring Instruments collection.
