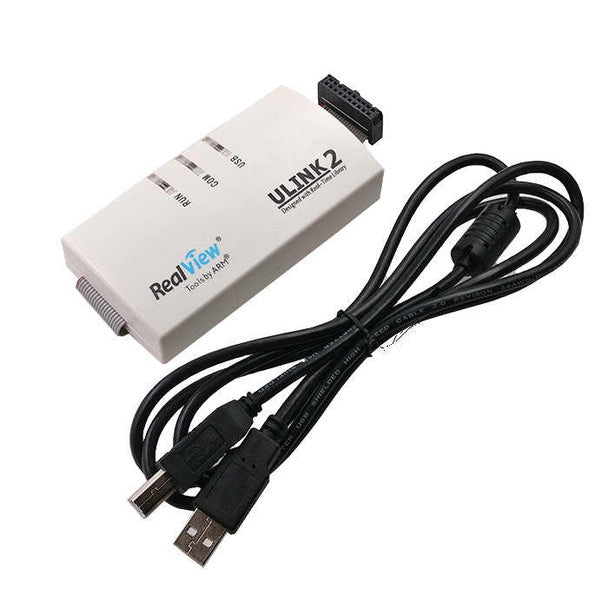

ULINK2 simulator STM32 simulator ARM

ARM Cortex-M & Legacy Core Support: Connects host PCs via USB to target systems for debugging and programming ARM7, ARM9, Cortex-M0, Cortex-M3, Cortex-M4, and STM32 microcontroller families.

Keil MDK-ARM Integration: Seamlessly interfaces with Keil µVision IDE and MDK-ARM development environments for real-time debugging, breakpoint setting, and memory inspection.

JTAG & SWD Interface Support: Fully supports both standard 20-pin JTAG and 2-wire Serial Wire Debug (SWD) clock and data communication modes for compact target boards.

Real-Time Trace & Flash Programming: Supports high-speed flash memory programming along with real-time target execution, variable tracing, and Serial Wire Viewer (SWV) data capture.

Plug-and-Play USB Interface: USB 2.0 full-speed connection provides fast data transfer speeds without requiring external power adapters or driver installations.

Module Construction: Housed in a durable ABS plastic enclosure with high-density internal PCB assembly, standard 20-pin JTAG header, and USB Type-B port.

Operating Voltage & Power: USB-powered (5V DC) with support for target I/O logic voltages ranging from 2.7V to 5.5V DC.

Handling Precautions: Align Pin 1 correctly when attaching the 20-pin ribbon cable to target development boards. Observe ESD safety precautions when handling exposed pin headers.

Environmental Limits: Operating temperature range spans -10°C to +60°C. Keep protected from static discharge, conductive metal dust, and liquid moisture.

Definitive Debugger for ARM Developers: Position as an essential hardware debugging interface for embedded software engineers working within the Keil MDK-ARM ecosystem.

Fast On-Chip Debugging & Tracing: Highlight its SWD and SWV trace capabilities for rapid troubleshooting of complex real-time firmware bugs.

Recommended Cross-Sell Add-ons: Pair with STM32F103C8T6 Minimum System Boards, JTAG 20-Pin Ribbon Cables, Logic Level Converters, and Breadboard Jumper Wires.

Ideal for Embedded Engineering Labs: Essential tool for university microelectronics courses, professional ARM firmware development, and industrial IoT prototyping.
