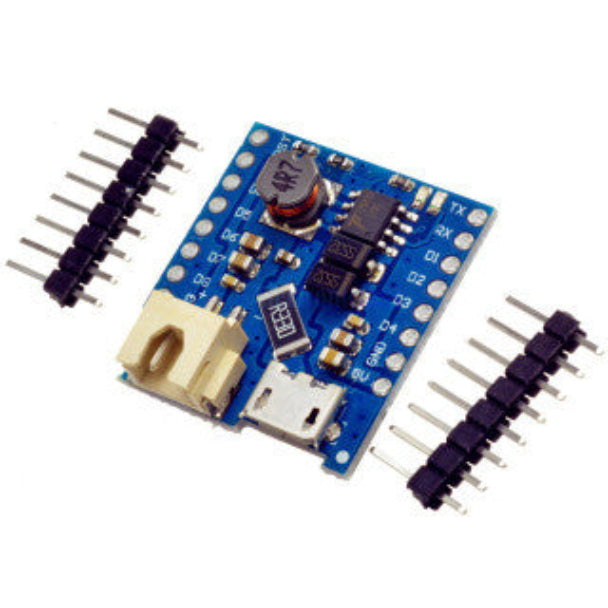

TP5410 5V 1A LiPo Charger & Boost Converter

All-in-One Charger & Step-Up Boost Solution: Integrates a 1 A single-cell lithium-ion/LiPo charging circuit with a 5V 1A synchronous boost converter on a single compact board.

Driven by TP5410 Management IC: Powered by the versatile TP5410 power management IC designed for high-efficiency lithium battery management and regulated step-up output.

Micro-USB Charging Input: Standard Micro-USB port allows convenient battery recharging directly from standard 5V USB wall adapters, computers, or solar panels.

Integrated Battery Protection Architecture: Built-in safeguards protect against cell overcharging, overdischarging, overcurrent, and output short circuits for enhanced battery safety.

Dual LED Status Indicators: Onboard surface-mount LEDs provide real-time visual feedback for charging progress and system power status.

Standard 0.1" (2.54mm) Pin Headers: Breakout pin headers enable seamless integration with microcontrollers like Arduino, ESP32, and Raspberry Pi via breadboards or jumper cables.

Housing & PCB Style: High-density double-sided FR-4 glass epoxy PCB with surface-mount circuitry and blue soldermask.

Contact & Terminal Style: Gold/nickel-plated breakout header pins and onboard female Micro-USB port.

Technical Specifications:

Main Controller IC: TP5410.

Input Voltage: 4.5V – 5.5V DC (via Micro-USB or input pads).

Target Battery Chemistry: 3.7V Nominal Lithium-Ion / Lithium-Polymer (1S).

Charging Current: Up to 1A (CC/CV charging mode).

Boost Output Voltage: 5V DC regulated (-+ 2%).

Boost Output Current: Up to 1A max output.

Color: Blue PCB with white silkscreen markings and silver component headers.

Usage Advice: Pay strict attention to battery polarity when connecting to BAT+ and BAT- terminals to avoid damaging the TP5410 chip.

Maintenance: Keep board terminals dry and free of solder flux residue. Store in anti-static packaging when not in active use.

Essential Single-Cell Power Hub: Position as a highly efficient, compact power solution for custom handheld electronics, portable IoT gateways, wireless sensor nodes, and DIY power banks.

Highlight Dual Functionality: Emphasize the seamless combination of battery charging and continuous $5\text{V}$ step-up boost regulation on a single lightweight module.

Recommended Cross-Sell Add-ons: Pair with TP4056 1A lithium charging module Type-C, 2 x 18650 Lithium Battery Shield Power Expansion Board, TP5100 4.2V/8.4V Li-ion Battery Charging Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Staple: Display prominently on your Battery Charger Module collection page under power boost & step-up combo modules.
