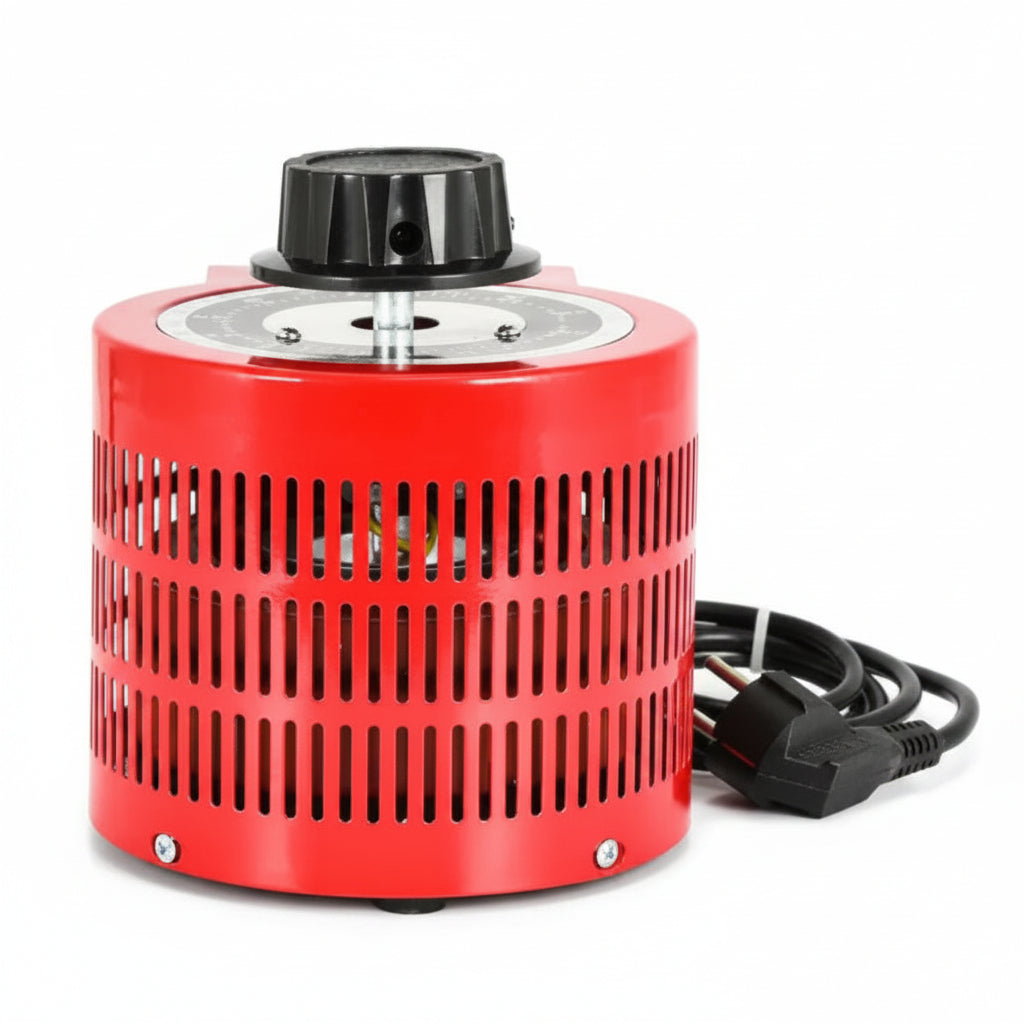

TDGC Meter Display Variac 0-250V Single Phase 2KVA AC Regulator

Variable Output Voltage Control: Features a top-mounted smooth rotary control knob with a calibrated dial scale for precise AC voltage adjustment from 0V to 250V AC.

2KVA (2000VA) High Capacity: Delivers high power capacity (up to 8A max output current) to safely test, troubleshoot, and calibrate single-phase AC equipment and heavy electrical loads.

Integrated Analog Meter Display: Built-in front-panel voltmeter provides real-time analog visual monitoring of output voltage level during operation.

Pure Sinusoidal Output Waveform: Auto-transformer design provides non-distorted AC output waveform without introducing harmonic distortion or electrical noise into connected test equipment.

Heavy-Duty Protective Metal Housing: Enclosed in a ventilated, industrial red steel body with built-in fuse protection and heavy-duty copper windings for efficient heat dissipation and safety.

Housing & Casing Style: Heavy-gauge ventilated metal alloy housing with a top-mounted polymer adjustment knob and non-slip rubber feet.

Contact & Connector Style: Standard output socket/screw terminal block and power switch.

Technical Specifications:

Model: TDGC2-2KVA (or equivalent TDGC series).

Input Voltage: AC 220V (50/60Hz).

Output Voltage: AC 0V–250V Adjustable.

Capacity: 2000VA (2 kVA).

Max Output Current: 8A.

Phase: Single Phase.

Color: Industrial Red casing with black base and control top.

Usage Advice: Ensure total power draw of connected load does not exceed 2000VA (8A). When starting sensitive loads, dial voltage to 0V first before powering on the unit.

Maintenance: Ensure side ventilation slots remain unobstructed for natural convective air cooling. Operate in a dry, clean, indoor bench testing environment.

Essential Electrical Testing & Lab Equipment: Position as the ultimate variable AC power supply for repair shops, R&D labs, quality control testing, variable motor speed regulation, and transformer prototyping.

Highlight 0-250V Manual Control & 2KVA Output: Emphasize its 2000VA capacity and continuous, distortion-free AC output voltage control for testing brownout behavior and overvoltage limits.

Recommended Cross-Sell Add-ons: Pair with AC220-9V Transformer For NY-D01 100A/40A Spot Welding Controller Board, E41X20/5W Power transformer 12v-0-12v, NDR-240-24 24V DC Output 240W 24V 10A Power Supply, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your AC to DC Transformers collection page as your highest capacity variable voltage regulator.
