STM8S 8L TSSOP20 Burning Testing Holder Downloader Offline Programmer

TSSOP20 Clamshell Test Socket: Premium zero-insertion-force (ZIF) TSSOP20 socket designed for rapid IC mounting, high-cycle endurance testing, and mass chip flashing without soldering.

STM8S & STM8L Microcontroller Support: Purpose-built for offline burning, firmware flashing, and production line testing of 8-bit STM8S and STM8L series microcontrollers in 20-pin TSSOP packages.

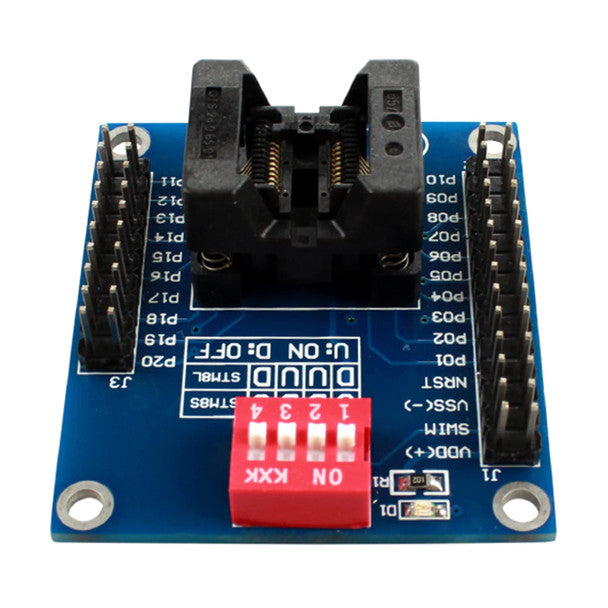

Onboard SWIM Interface Pin Headers: Features standard single-wire interface module (SWIM) programming headers for seamless pairing with ST-LINK/V2 debuggers and offline production programmers.

Configurable DIP Switch Control: Integrated multi-position DIP switch for quick setting of operating modes, pin routing, or logic configurations during batch flashing cycles.

Breakout Header Pins: Breaks out TSSOP20 IC pins to dual 2.54mm pitch headers, enabling easy probe attachment and signal monitoring during functional testing.

Module Construction: Built with an industrial-grade Enplas TSSOP20 clamshell socket on a multi-layer FR-4 glass epoxy printed circuit board with gold-plated contacts and mounting holes.

Operating Voltage & Logic: Operates logic and chip programming lines on 3.3V or 5V DC supplied via external programmer header connections.

Handling Precautions: Gently press the clamshell latch to open and insert chips; avoid forcing ICs to prevent bending micro-pitch socket contacts. Observe ESD precautions during chip handling.

Environmental Limits: Operating temperature range spans-20°C to +70°C. Keep protected from dust, metallic particles, and liquid exposure.

Essential Mass Flashing Tool for STM8: Position as an indispensable hardware tool for production lines, assembly facilities, and test engineers programming TSSOP20 STM8 chips before PCB mounting.

Eliminates In-Circuit Flashing Bottlenecks: Highlight how pre-flashing chips in a dedicated ZIF socket speeds up manufacturing throughput and simplifies quality control.

Recommended Cross-Sell Add-ons: Pair with ST-LINK/V2 Debugger & Offline Programmers, STM8 Development Boards, and Dupont Jumper Wires.

High-Durability Production Setup: Ideal choice for factory burn-in testing, firmware flashing stations, and automated test environments.
