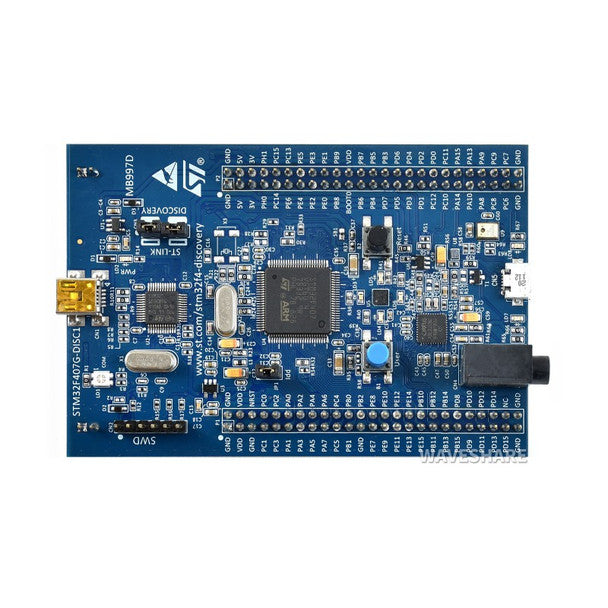

STM32F4DISCOVERY / STM32F407G-DISC1 Discovery Board

High-Performance ARM Cortex-M4 Core: Powered by the STM32F407VGT6 32-bit microcontroller running up to 168 MHz with Floating Point Unit (FPU), DSP instructions, and memory protection unit (MPU).

Onboard Flash & SRAM Memory: Features 1 MB of internal Flash memory and 192 KB of SRAM to easily accommodate complex embedded applications, digital signal processing algorithms, and RTOS environments.

Integrated ST-LINK/V2-1 Debugger: Onboard ST-LINK/V2-1 circuit supports direct USB programming, virtual COM port emulation, mass storage interface, and real-time debugging via SWD.

Onboard Sensors & Audio Hardware: Equipped with LIS302DL or LIS3DSH 3-axis MEMS accelerometer, MP45DT02 digital MEMS microphone, and CS43L22 audio DAC with integrated Class-D speaker driver.

Rich Peripheral & I/O Expansion Headers: Exposes all GPIO pins on standard 2.54mm pitch extension headers, along with USB OTG FS connector, user buttons, and 8 status LEDs for fast prototyping.

Module Construction: Built on a multi-layer FR-4 PCB with high-density surface-mount integrated circuits, gold-plated extension headers, and crystal oscillators.

Operating Voltage & Logic: USB-powered (5V DC) with onboard 3.3V and 3V low-dropout regulators. Target logic operates at 3.3V DC with 5-tolerant I/O pins.

Handling Precautions: Always handle the board by its edges and observe ESD safety procedures. Verify proper voltage routing before connecting external hardware shields or daughterboards.

Environmental Limits: Operating temperature range spans -40°C to +85°C. Keep protected from static discharge, conductive metal dust, and direct liquid contact.

Flagship Discovery Board for ARM Developers: Position as the ultimate feature-packed evaluation platform for engineers, students, and hobbyists exploring advanced 32-bit Cortex-M4 DSP capabilities.

All-in-One Sensor & Audio Development Bench: Highlight the onboard MEMS sensors and audio DAC codec, making it ideal for voice recognition, digital signal filtering, and audio processing projects right out of the box.

Recommended Cross-Sell Add-ons: Pair with ST-LINK/V2 Debuggers, OLED Display Modules (SPI/I2C), USB Type-A to Mini-B / Micro-B Cables, and Breadboard Jumper Wire Sets.

Ideal for University Labs & Commercial Prototyping: Must-have platform for academic microelectronics courses, RTOS learning, and industrial IoT firmware development.
