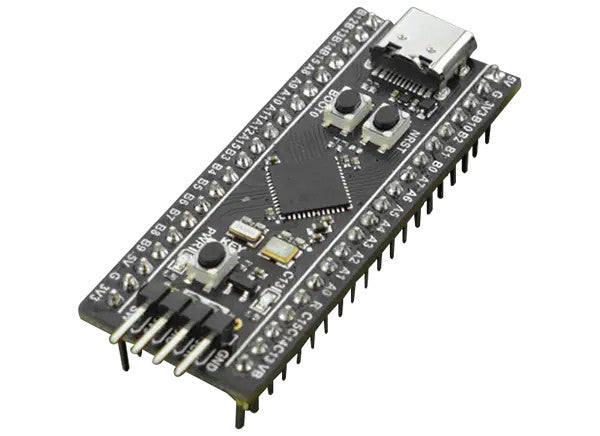

STM32F411 "BlackPill" Development Board

ARM Cortex-M4 Core with FPU: Powered by the STM32F411CEU6 32-bit microcontroller running at up to 100 MHz, featuring a Hardware Floating Point Unit (FPU) and DSP instructions for high-speed computing tasks.

Expanded Flash & SRAM Memory: Equipped with 512 KB of embedded Flash memory and 128 KB of high-speed SRAM, providing ample space for complex firmware, buffer management, and RTOS environments.

Modern USB Type-C Connector: Features a robust USB Type-C port for 5V power delivery, serial communication, and Direct Firmware Upgrade (DFU) bootloader flashing.

Comprehensive Peripheral Interfaces: Exposes full GPIO access with hardware support for SPI, I2C, USART, PWM channels, and a 12-bit Analog-to-Digital Converter (ADC).

Dedicated SWD Header & Onboard Controls: Includes a standard 4-pin Serial Wire Debug (SWD) header for ST-LINK/V2 debugging, user and NRST push buttons, and an onboard power/user status LED.

Module Construction: Built on a sleek, high-density black double-sided FR-4 PCB with surface-mount components, an onboard 25 MHz primary crystal, and a 32.768 kHz RTC crystal.

Operating Voltage & Logic: Operates logic lines at 3.3V DC (with 5V-tolerant I/O pins). Powered directly via USB Type-C (5V DC) or through the external VIN pin (4.5V to 9V DC).

Handling Precautions: Practice standard electrostatic discharge (ESD) safety. Verify pin orientation and voltage levels before making connections to external breadboards or debuggers.

Environmental Limits: Operating temperature range spans -40°C to +85°C. Keep protected from direct moisture, metallic debris, and short circuits during testing.

The Premier Step-Up from the "Blue Pill": Position as the high-performance successor to standard Cortex-M3 boards, perfect for creators needing more memory, faster clock speeds, and modern USB Type-C connectivity.

Ideal for DSP & Sensor Fusion Projects: Highlight its Cortex-M4 FPU capability, making it an excellent platform for real-time signal processing, voice analysis, and advanced motor control.

Recommended Cross-Sell Add-ons: Pair with ST-LINK/V2 Debuggers, USB Type-C Data Cables, OLED Display Modules (I2C/SPI), and Breadboard Jumper Wire Sets.

Essential for Modern Firmware Workbenches: Great fit for academic microelectronics courses, RTOS integration training, and low-cost IoT product prototyping.
