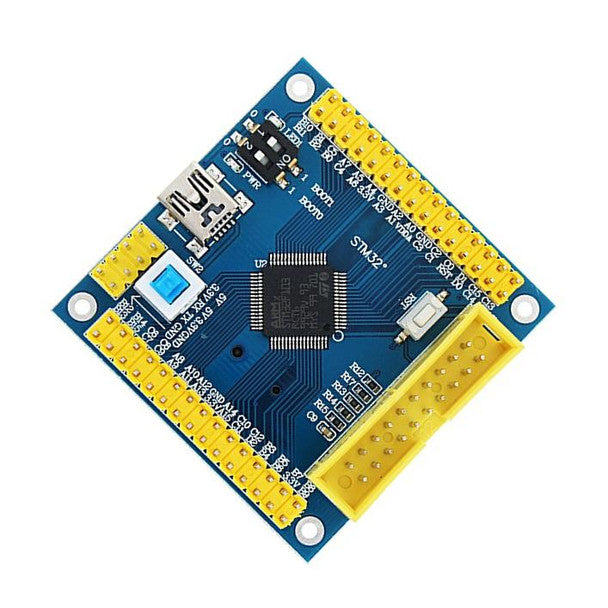

STM32F103RET6 ARM System Development Board

High-Performance ARM Cortex-M3 Core: Powered by the STM32F103RET6 32-bit microcontroller running up to 72 MHz, delivering strong computing performance for demanding embedded applications.

Expanded High-Density Memory: Features 512 KB of embedded Flash memory and 64 KB of SRAM—providing double to quadruple the capacity of standard entry-level STM32 boards for large codebases and data buffers.

Dedicated SWD & JTAG Headers: Includes standard Serial Wire Debug (SWD) and JTAG debug interfaces for fast, real-time debugging, breakpoint setting, and firmware programming with ST-LINK/V2 or J-Link.

Rich Peripheral & IO Breakout: Exposes full GPIO pin headers alongside hardware support for multiple SPI, I2C, USART, CAN bus, PWM timers, and multi-channel 12-bit ADC inputs.

Integrated Power Management & USB: Equipped with an onboard 3.3V LDO regulator, power/user status LEDs, reset and boot select buttons, and USB connectivity for power and communication.

Module Construction: Built on a multi-layer FR-4 glass epoxy PCB featuring high-density SMD components, dual 2.54mm header rows, onboard 8 MHz system crystal, and 32.768 kHz RTC crystal oscillator.

Operating Voltage & Logic: Target logic operates at 3.3V DC (with many 5V-tolerant GPIO pins). Powered via onboard USB interface (5V DC) or external V_IN power pins.

Handling Precautions: Practice standard electrostatic discharge (ESD) precautions. Always double-check boot pin configurations (BOOT 0 / BOOT 1) and pin alignments before powering the module.

Environmental Limits: Operating temperature range spans -40°C to +85°C. Keep protected from liquid moisture, conductive debris, and unintended short circuits.

High-Density Upgrade for STM32 Developers: Position as the ultimate high-memory alternative to standard "Blue Pill" boards, perfect for projects that outgrow 64 KB or 128 KB Flash limits.

Ideal for Complex Firmware & RTOS: Highlight its generous 512 KB Flash and 64 KB SRAM, making it well-suited for running FreeRTOS, graphics stack libraries, and multi-protocol communication stacks.

Recommended Cross-Sell Add-ons: Pair with ST-LINK/V2 Debuggers, FTDI USB-to-TTL Serial Converters, TFT/OLED Display Modules, and Breadboard Jumper Wire Sets.

Essential for Advanced Workbenches: Excellent choice for university microelectronics labs, industrial control prototyping, and commercial IoT product development.
