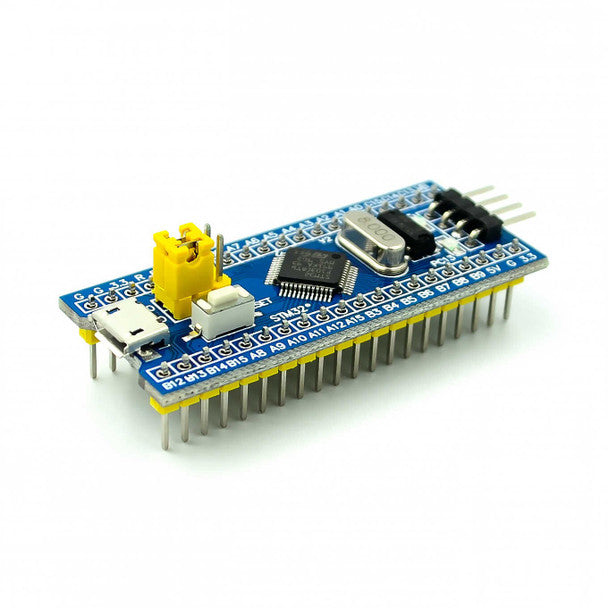

STM32F103C8T6 Blue Pill Development Board

High-Performance 32-Bit ARM Cortex-M3 Core: Powered by the STM32F103C8T6 microcontroller operating at up to 72 MHz CPU clock frequency, delivering fast processing for embedded software and digital control tasks.

Onboard Flash & SRAM Memory: Equipped with 64 KB of embedded Flash memory and 20 KB of high-speed SRAM, suitable for custom firmware code, real-time operating systems (RTOS), and buffer storage.

Standard 4-Pin SWD Header: Features a dedicated Serial Wire Debug (SWD) header interface for convenient in-circuit programming and debugging using ST-LINK/V2 debuggers or generic ARM programmers.

Versatile Peripheral Connections: Exposes full GPIO connectivity along with hardware support for SPI, I2C, USART, PWM channels, and 12-bit Analog-to-Digital Converter (ADC) inputs.

Dual Boot Mode Jumpers & Micro-USB Port: Includes onboard yellow BOOT jumpers (BOOT 0 / BOOT 1) for easy bootloader selection, along with a Micro-USB port for 5V power input and serial communication.

Module Construction: Built on a classic blue double-sided FR-4 PCB with high-density SMD components, onboard 8MHz primary crystal oscillator, and 32.768 kHz RTC crystal.

Operating Voltage & Logic: Operates logic lines at 3.3V DC (with many 5V}-tolerant GPIO pins). Powered via Micro-USB (5V DC) or external V_IN pin (4.5V to 9V DC).

Handling Precautions: Always practice standard electrostatic discharge (ESD) safety. Double-check BOOT 0 jumper positions when uploading code via UART or SWD.

Environmental Limits: Operating temperature range spans -40°C to +85°C. Keep protected from moisture, metallic dust, and short circuits during breadboard wiring.

The Ubiquitous Embedded Electronics Bench Tool: Position as the most popular, cost-effective 32-bit development board for makers, students, and engineers upgrading from standard 8-bit microcontrollers.

Extensive Open-Source & Ecosystem Support: Highlight its wide compatibility with STM32CubeIDE, Keil MDK, and the Arduino IDE framework (STM32duino) for ultra-fast software prototyping.

Recommended Cross-Sell Add-ons: Pair with ST-LINK/V2 Debuggers, FTDI USB-to-TTL Serial Adapters, 0.96-inch OLED Displays (I2C), and Breadboard Jumper Wires.

Essential for Academic & Hobbyist Benches: Must-have platform for learning 32-bit embedded system design, RTOS kernel integration, and low-cost IoT device prototyping.
