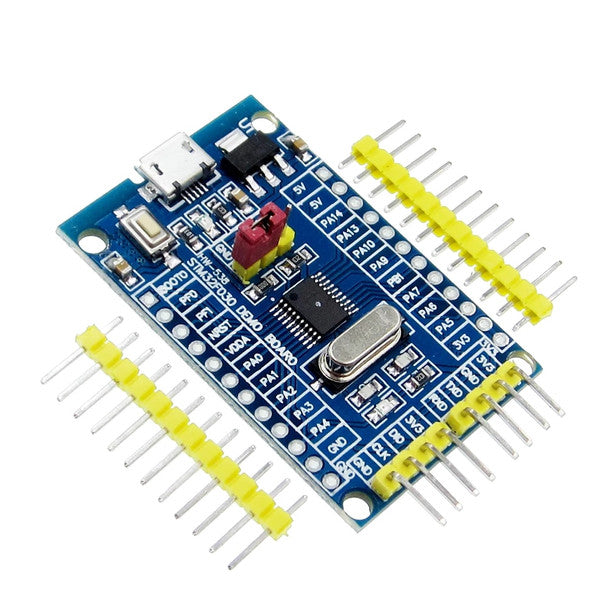

STM32F030F4P6 ARM CORTEX-M0 Core Board

ARM Cortex-M0 Core Architecture: Powered by the 32-bit STM32F030F4P6 microcontroller running up to 48 MHz, delivering entry-level 32-bit computing performance with ultra-low power consumption.

Onboard Flash & SRAM Memory: Features 16 KB of embedded Flash memory and 4 KB of high-speed SRAM, suitable for light embedded control tasks, sensor node monitoring, and basic firmware logic.

SWD Debugging Interface: Includes a 4-pin Serial Wire Debug (SWD) header for fast, real-time debugging, firmware uploads, and register inspection using ST-LINK/V2 debuggers.

Compact TSSOP20 Form Factor: Minimalist board layout exposes essential GPIO pins on breadboard-friendly 2.54mm pitch headers while maintaining an exceptionally small footprint.

Integrated Micro-USB Power Supply: Onboard 3.3V low-dropout (LDO) regulator powered via standard Micro-USB port or external pin headers for versatile prototyping options.

Module Construction: Built on a double-sided FR-4 glass epoxy PCB featuring high-density surface-mount components, onboard 8 MHz crystal oscillator, and pin headers.

Operating Voltage & Logic: Operates logic lines at 3.3V DC (with 5V-tolerant I/O pins). Powered via Micro-USB (5V DC) or external V_IN power pins (3.3V to 5V DC).

Handling Precautions: Observe standard electrostatic discharge (ESD) safety procedures. Verify proper jumper pin configurations (BOOT 0) before flashing firmware via SWD or serial bootloader.

Environmental Limits: Operating temperature range spans -40°C to +85°C. Protect from direct moisture, conductive metal particles, and static discharge.

Ultra-Low-Cost Entry to 32-Bit ARM: Position as the most affordable 32-bit ARM Cortex-M0 development board for students and makers transitioning from basic 8-bit microcontrollers.

Ideal for Compact Embedded Projects: Highlight its tiny footprint and low power usage for wearable projects, custom sensor nodes, and small electronic controls.

Recommended Cross-Sell Add-ons: Pair with ST-LINK/V2 Debuggers, FTDI USB-to-TTL Serial Converters, OLED Display Modules (I2C), and Breadboard Jumper Wires.

Essential for Academic & DIY Workbench: Perfect budget-friendly platform for learning embedded C programming, RTOS basics, and low-level peripheral configuration.
