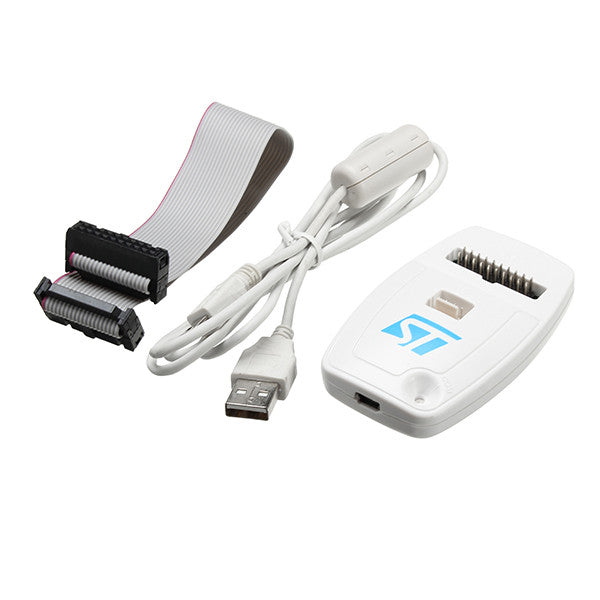

ST-LINK/V2 Debugger EMULATOR

STM8 & STM32 Microcontroller Support: Full-featured in-circuit debugger and programmer designed for the entire family of STM8 (via SWIM) and STM32 (via JTAG/SWD) microcontrollers.

JTAG, SWD & SWIM Interface Support: Features single-wire interface module (SWIM) for STM8 microcontrollers along with serial wire debug (SWD) and JTAG interfaces for STM32 32-bit ARM Cortex-M cores.

Direct IDE Integration: Fully integrated with official development environments including STM32CubeIDE, Keil MDK, IAR Embedded Workbench, and ST Visual Develop (STVD).

Firmware Auto-Upgrade Ability: Supports automatic online firmware upgrades via ST-LINK Utility or STM32CubeProgrammer to keep compatibility up-to-date with new IC releases.

Complete Interface Cable Suite: Includes standard ribbon cables and jumper connections for quick pairing with target evaluation boards, custom PCBs, and debugging jigs.

Module Construction: Housed in a durable plastic protective enclosure with internal high-density SMD circuitry, gold-plated USB interface, and shrouded ribbon cable connector headers.

Power Supply & Operating Voltage: Powered directly via host USB (5V DC). Delivers 3.3V or 5V DC auxiliary power output to target boards (1.65V–5.5V target application sensing).

Handling Precautions: Verify correct target pin alignments (V_APP}, GND, SWDIO, SWCLK, SWIM) prior to powering target hardware to avoid short circuits.

Environmental Limits: Operating temperature range spans 0°C to +50°C. Keep protected from static discharge, metallic debris, and direct liquid contact.

Essential ST Microelectronics Companion: Position as the standard workbench tool for firmware engineers, hobbyists, and students working with STM32 ARM Cortex and STM8 microcontrollers.

Hardware In-Circuit Debugging Power: Highlight real-time breakpoint setting, step-by-step code execution, register inspection, and memory tracing capabilities.

Recommended Cross-Sell Add-ons: Pair with STM32 Development Boards, STM8S/STM8L Modules, Dupont Jumper Wires, and USB Extension Cables.

Ideal for Professional Embedded Prototyping: Perfect solution for commercial product development, firmware flashing jigs, and academic microelectronics laboratories.
