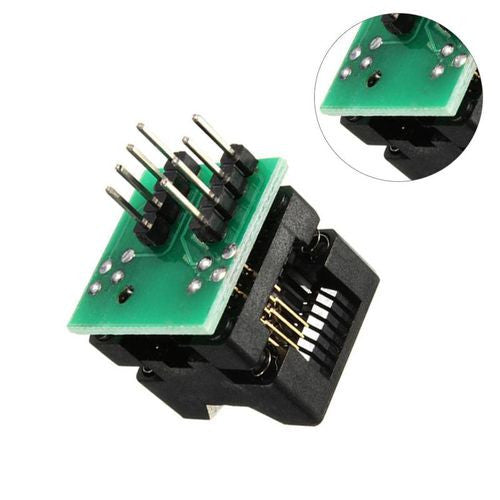

SOP8 to DIP8 EZ 150mil Programmer Adapter

Zero-Insertion-Force (ZIF) Socket Design: Spring-loaded pop-up mechanism allows rapid insertion and extraction of surface-mount chips without soldering or applying manual pressure.

150mil Narrow-Body SOP8/SOIC8 Conversion: Specially engineered to convert narrow-body 150mil (3.9mm) SOP8 / SOIC8 surface-mount ICs into standard 300mil} DIP8 pinouts.

Gold-Plated Beryllium Copper Contacts: Low-resistance gold-plated pin contacts ensure high signal integrity, low contact resistance, and long contact lifespan during repeated flashing cycles.

Universal Programmer Compatibility: Fits directly into standard 40-pin ZIF sockets on popular programmers, including the CH341A, TL866II Plus, EZP2019, RT809F, and PICKIT adapters.

Standard 2.54mm DIP8 Pin Headers: Bottom DIP pins feature standard 2.54mm (0.1-inch) pitch, making it plug-and-play with breadboards, prototype boards, and IC sockets.

Module Construction: Built on a double-sided FR-4 glass epoxy PCB with a high-durability engineering plastic socket body and gold-plated alloy contacts.

Operating Voltage & Signals: Supports logic signal pass-through from 1.8V to 5V DC, depending on the host programmer configuration.

Handling Precautions: Press the top socket frame down evenly before inserting or removing target ICs. Align Pin 1 correctly according to the silk-screened indicator on the PCB.

Environmental Limits: Operating temperature range spans -40°C to +85°C. Keep clean from solder flux residue, dust, and direct liquid contact.

Essential In-Circuit Flashing Adapter: Position as a must-have time-saving accessory for technician toolkits, eliminating tedious soldering when flashing narrow-body EEPROMs and SPI flash ICs.

Perfect Solution for BIOS & TV Repair: Highlight how easily hardware technicians can flash BIOS memory, TV firmware chips, and automotive ECU memory chips off-board.

Recommended Cross-Sell Add-ons: Pair with USB Programmer CH341A Series 24 EEPROM Writers, TL866-3G Universal Programmers, 1.8V SPI Adapter Modules, and SOP16 to DIP8 Adapters.

Ideal for Hardware Hackers & Technicians: Essential accessory for electronic repair shops, firmware developers, and reverse-engineering labs.
