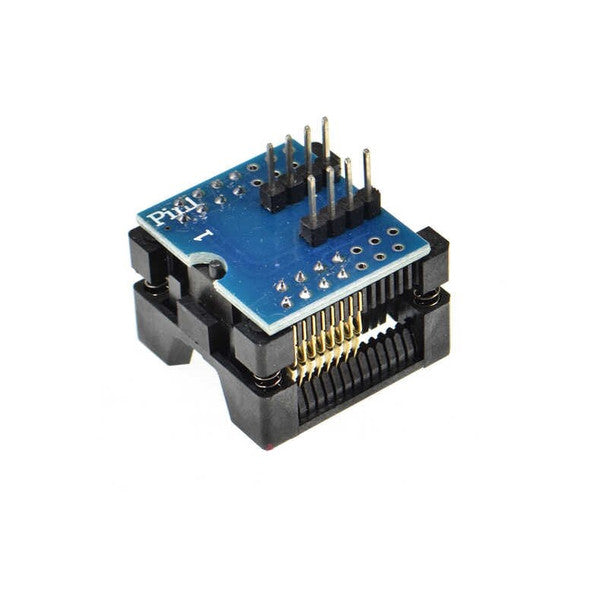

SOP16 to DIP8 EZ 300mil Programmer Adapter

Zero-Insertion-Force (ZIF) Socket Design: Spring-loaded pop-up mechanism enables fast, tool-free insertion and extraction of surface-mount ICs without soldering or damaging delicate chip leads.

300mil Wide-Body SOP16/SOIC16 Conversion: Engineered specifically to convert wide-body 300mil (7.5mm) SOP16, SOIC16, and SO16 surface-mount IC packages into standard 300mil DIP8 pinouts.

Gold-Plated Beryllium Copper Contacts: High-grade gold-plated pin contacts ensure excellent conductivity, low contact resistance, and long contact lifespan over thousands of insertion cycles.

Universal Programmer Compatibility: Interfaces seamlessly with standard 40-pin ZIF sockets on popular programmers, including the CH341A, TL866II Plus, EZP2019, RT809F, and PICKIT adapters.

Standard 2.54mm DIP8 Pin Headers: Bottom DIP pins feature a standard 2.54mm (0.1-inch) pitch, making it plug-and-play with breadboards, prototype boards, and universal IC sockets.

Module Construction: Constructed on a durable double-sided FR-4 glass epoxy PCB featuring a high-impact engineering plastic socket shell and gold-plated alloy contacts.

Operating Voltage & Signals: Supports logic signal pass-through from 1.8V to 5V DC, matching host programmer and target IC logic requirements.

Handling Precautions: Push the top socket frame down fully before inserting or removing target ICs. Align Pin 1 carefully according to the silk-screened indicator on the PCB base.

Environmental Limits: Operating temperature range spans -40°C to +85°C. Keep clean from flux residue, metallic particles, and direct liquid contact.

Essential Tool for BIOS & Firmware Technicians: Position as an indispensable time-saving accessory for technician toolkits, eliminating tedious unsoldering and resoldering when flashing wide-body SPI flash ICs.

Perfect Solution for TV & PC Repair: Highlight how easily hardware technicians can program wide-body 16-pin BIOS chips, TV mainboard memory, and automotive ECU chips off-board.

Recommended Cross-Sell Add-ons: Pair with USB Programmer CH341A Series 24 EEPROM Writers, EZP2019 USB SPI Programmers, 1.8V SPI Adapter Modules, and SOP8 to DIP8 Adapters.

Ideal for Electronics Benches & Hardware Hackers: Essential tool for computer repair shops, firmware developers, and reverse-engineering laboratories.
