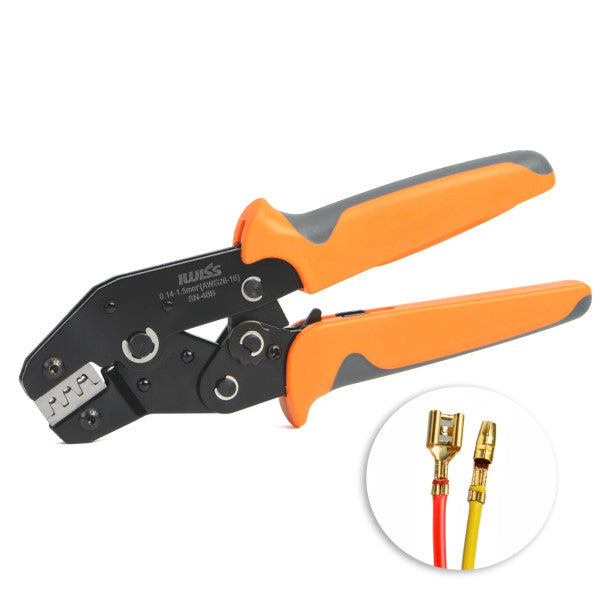

SN-48B wire crimping Pliers/ Tool

High-Leverage Open-Barrel Crimper: Engineered for precise, high-strength crimping of open-barrel terminals and spade connectors across 0.14mm^2 - 1.5mm^2 (26 - 16AWG).

Multi-Slot Jaw Design: Features 4 precision-milled jaw slots (26 - 20 AWG, 18 AWG, and 16 AWG) to handle various wire gauges and terminal insulation sizes with exact compression.

Full-Cycle Ratchet Mechanism: Integrated self-locking ratchet system ensures complete, uniform jaw compression before releasing, eliminating loose or poorly crimped connections.

High-Precision Wire EDM Dies: Micro-profiled wire electrical discharge machining (EDM) dies form tight, factory-standard B-style crimps on both wire cores and insulation tabs.

Broad Terminal Compatibility: Compatible with a wide variety of open-barrel terminals including DuPont 2.54mm, 2.8mm/3.96mm/4.8mm/6.3mm spade connectors, JST, Molex, and automotive pin terminals.

Ergonomic Cushion Grips: Non-slip, two-color TPR/PVC handle sleeves offer maximum leverage and hand comfort during high-volume wire assembly work.

Body & Die Material: High-strength drop-forged carbon steel frame with a black oxide coating for enhanced corrosion protection.

Handle Sleeves: Dual-component ergonomic TPR/PVC plastic insulation.

Technical Specifications:

Model: SN-48B.

Crimping Capacity: $0.14\text{mm}^2 - 1.5\text{mm}^2$ ($26 - 16\text{ AWG}$).

Compatible Terminals: Open-barrel spade connectors, tab terminals, DuPont, JST, and Molex pin terminals.

Overall Length: Approx. $190\text{mm}$ ($7.5\text{ inches}$).

Usage Advice: Select the jaw notch matching your wire gauge, insert the terminal and wire, then squeeze until the ratchet automatically releases.

Maintenance & Storage: Clean crimp slots regularly to remove metal shavings and apply light machine oil to the pivot pins and ratchet gear.

Essential Tool for Automotive & Harness Wiring: Position as a top-tier open-barrel terminal crimper for automotive electricians, custom cable builders, motorcycle harness restorers, and robotics hobbyists.

Highlight 4-Slot Gauge Range & Ratchet Reliability: Emphasize its broad 26 - 16 AWG range and high-precision EDM dies as major performance upgrades over standard non-ratcheting pliers.

Recommended Cross-Sell Add-ons: Pair with SN-28B crimping Pliers/ Tool, SN-02WF2C crimping Pliers/ Tool, Wire stripper/crimper Pliers tool, and 170 Wishful clamp Flush Cutter.

Featured Collection Star: Showcase prominently in your Pliers and Tweezers collection page as an essential spade terminal crimp tool.
