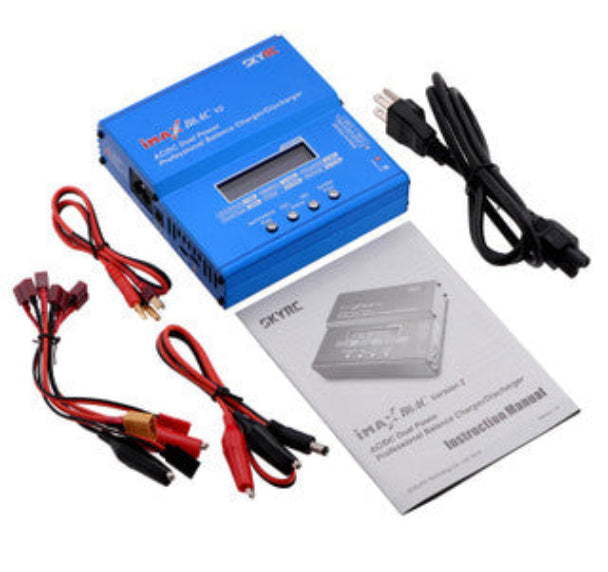

SKYRC iMAX B6AC V2 Professional Balance Charger/Discharger

Dual Power Input (AC/DC): Versatile integrated dual power system supports both direct household wall outlets (100V – 240V AC) and external field battery power supplies (11V – 18V DC) without requiring separate power bricks.

Microprocessor-Controlled Precision: Microcontroller-managed charging, discharging, and individual cell balancing ensures ultimate battery safety, efficiency, and accurate capacity management.

PC Connectivity & Firmware Upgrades: Features a Micro-USB port enabling PC control, charge-curve graph monitoring, and future firmware updates using SkyRC's Charge Master software suite.

Comprehensive Multi-Chemistry Compatibility: Charges and discharges Lithium Polymer (LiPo), Lithium Iron (LiFe), Lithium Ion (Li-Ion), Lithium High Voltage (LiHV), NiMH, NiCd, and Lead-Acid (Pb) batteries.

Smart Battery & Storage Modes: Dedicated Storage Mode maintains cell stability for long-term storage, while Re-Peak and Cyclic charging options optimize performance for aging packs.

Advanced Battery Internal Resistance Meter: Built-in total resistance and individual cell resistance monitoring tools allow accurate analysis of battery health and cell degradation.

Housing & Casing Style: Heavy-duty blue anodized aluminum alloy casing with internal heat dissipation fins and active cooling fan.

Contact & Terminal Style: 4mm banana output jacks, 2S–6S JST-XH balance pin headers, standard AC power inlet, DC 11–18V input port, temperature sensor port, and Micro-USB port.

Technical Specifications:

Input Voltage: 100V – 240V AC (50/60Hz / 11V – 18V DC.

Circuit Power: Max Charge Power 50W / Max Discharge Power 5W.

Charge Current Range: 0.1A – 6.0A.

Discharge Current Range: 0.1A – 2.0A.

Supported Cell Counts: LiPo / Li-Ion / LiFe / LiHV (1-6S), NiMH / NiCd (1-15S), Pb battery voltage (2V – 20V).

Color: Blue anodized casing with high-contrast backlit LCD screen.

Usage Advice: When charging multi-cell lithium batteries, always plug in both the main power leads and the JST-XH balance lead. Use the built-in LiHV mode only for high-voltage cells (4.35V max per cell).

Maintenance: Ensure side ventilation fan openings are kept free of dust and debris. Unplug from power when not in active operation.
