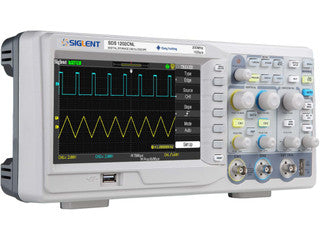

Siglent SDS1102CNL+ LCD Digital Oscilloscope, 100 MHz

100MHz Dual-Channel Bandwidth: Features two fully independent analog channels with a 100 MHz bandwidth, ideal for high-speed digital circuit debugging, embedded systems, and RF testing.

1GSa/s High-Speed Real-Time Sampling: Captures fast transient waveforms with up to 1 GSa/s real-time sampling rate (500 MSa/s dual-channel) and 50 GSa/s equivalent-time sampling rate.

7-Inch HD Color TFT LCD Screen: High-contrast 7-inch color display (480 x 234 resolution) provides crisp waveform visualization, multi-parameter statistics, and dynamic menu navigation.

Comprehensive Digital Hardware Triggers: Offers versatile trigger modes including Edge, Pulse Width, Video, Slope, and Alternative triggers to isolate complex signal events.

FFT Spectrum Analysis & Math Operations: Built-in Fast Fourier Transform (FFT) enables real-time signal frequency spectrum analysis alongside math capabilities (+, -, x , \ ).

Dual-USB Connectivity & Direct PC Interface: Front panel USB host port supports quick flash drive screenshots and setup storage, while rear USB device connection enables remote PC software control.

Housing & Control Hardware: Heavy-duty, industrial-grade ABS benchtop chassis equipped with smooth rotary encoders, long-life tactile pushbuttons, and solid nickel-plated BNC input jacks.

Technical Specifications:

Analog Bandwidth: 100 MHz (2 Channels).

Real-Time Sampling Rate: 1 GSa/s.

Memory Depth: 40 Kpts (Single Channel), 20 Kpts (Dual Channel).

Vertical Sensitivity: 2 mV/div - 10V/div.

Input Impedance: 1 M ohms -+ 2% in parallel with 17pF -+ 3pF.

Power Supply: Universal mains power input (100 - 240V AC, 45 - 440Hz).

Usage Advice: Verify probe attenuation switches (1X /10X) are correctly matched in the channel menu settings to ensure precise amplitude measurement.

Maintenance & Cleaning: Keep rear cooling vents free from obstruction. Clean screen and body panels gently using a soft, dry microfiber cloth.

Premier Laboratory Grade Workhorse: Position as a top-tier, industrial-grade benchtop oscilloscope suitable for professional R&D labs, electronics manufacturing, technical universities, and expert repair technicians.

Highlight 100MHz Bandwidth & 1GSa/s Sampling Rate: Emphasize its impressive 100MHz bandwidth ceiling and 1 GSa/s sampling engine as a reliable benchmark instrument for precision diagnostic validation.

Recommended Cross-Sell Add-ons: Pair with P6100 DC-100MHz Passive Oscilloscope Probe, 1M BNC male to Dual crocodile clamp, Oscilloscope test cable, UTD2102CEX+ 2 Channels Digital Storage Oscilloscope, and FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator.

Flagship Benchtop Highlight: Feature prominently at the top of your Oscilloscopes & Generators collection as a premier bench instrument choice.
