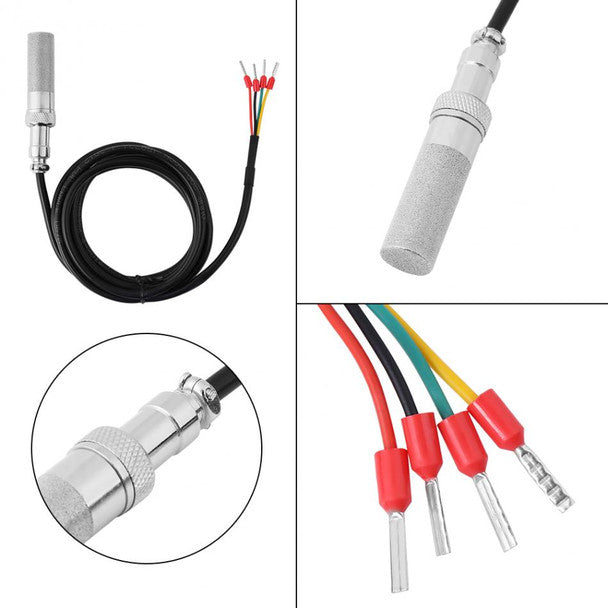

SHT10 Soil Temperature & Humidity Sensor

Dual Temperature & Relative Humidity Telemetry: Employs Sensirion’s SHT10 CMOSens® technology to deliver calibrated digital readings for both soil temperature and volumetric moisture levels.

Probing Enclosure Design: Housed in a porous, sintered metal filter housing that allows soil moisture and air water vapor to permeate while blocking large soil particulates and dirt.

Fully Calibrated Digital Output: Features internal signal factory calibration to provide digitized, noise-immune outputs over a two-wire serial interface without needing custom ADC calibration.

Wide Thermal & Moisture Sensing Spectrum: Measures temperatures across a wide spectrum with high stability and precision, optimized for harsh subterranean agricultural environments.

Pre-Wired & Weatherproofed Cables: Outfitted with an extended multi-wire copper cable bundle terminating in color-coded wire leads for quick connection to host microcontrollers.

Housing Material: Heavy-duty sintered stainless steel filter body with high-grade copper internal lead wires and protective outer PVC jacketing.

Technical Specifications:

Sensor Chip: Sensirion SHT10 Digital Humidity & Temperature Sensor.

Operating Voltage: 2.4V – 5.5V DC (3.3V / 5.0V typical).

Interface Protocol: 2-Wire Digital Serial Output.

Temperature Resolution: 14-bit (0.01°C).

Humidity Resolution: 12-bit (0.05% RH).

Color: Silver Sintered Metal Probe with Black Cable & Multicolor Terminal Wire Ends.

Usage Advice: Insert the sintered metal tip directly into garden soil or potting substrate; connect power (3.3V/5V), GND, SCK (Clock), and DATA lines to your microcontroller's GPIO pins.

Maintenance: Ensure the sintered metal cap does not remain submerged in standing muddy water for prolonged periods; clean the exterior metal filter gently with dry air or clean water if soil cakes over the pore openings.

Essential Underground Substrate Probe: Position as a top-grade, weather-resistant probe for automated irrigation control, greenhouse environmental monitoring, and outdoor weather stations.

Highlight Sintered Metal Protection: Emphasize how the porous metal filter casing shields delicate silicon optics from soil abrasion while allowing accurate, real-time humidity transfer.

Recommended Cross-Sell Add-ons: Pair with SHT31 Soil Temperature & Humidity Sensor, 3-in-1 Integrated Sensor Temperature + Humidity + PH, Analog Capacitive Soil Moisture Sensor, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Soil Moisture Sensors collection page as your standard digital subterranean probe.
