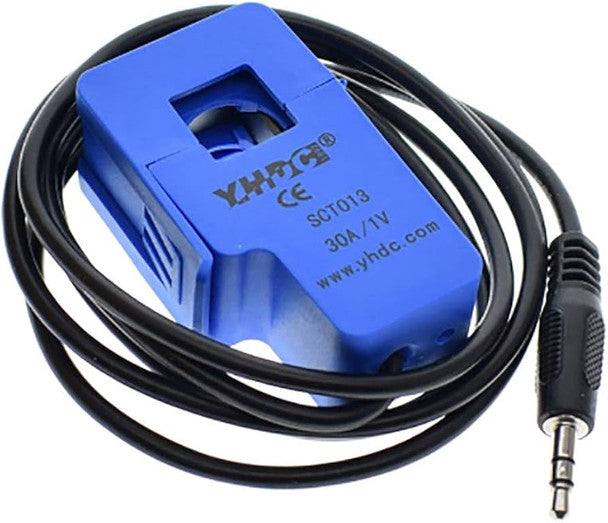

SCT-013-030 Non-Invasive AC Current Clamp Sensor 30A 1V

Split-Core Non-Invasive Current Sensing: Features a snap-on split-core design that clips around live conductors without cutting wires or interrupting circuit operation.

0A to 30A AC Measurement Range: Optimized to measure single-phase AC currents up to 30A RMS, ideal for residential appliance profiling and energy auditing.

Built-in Sampling Resistor (1V Voltage Output): Outfitted with an internal burden resistor that converts induced current into a safe 0 - 1V AC voltage output for direct ADC sampling.

Ferrite Core High Linearity: Built using high-permeability ferrite core materials to ensure high linearity and low phase shift across standard 50Hz / 60Hz mains frequencies.

Standard 3.5mm Audio Jack Connector: Terminated with a standard 3.5 mm TRS plug output for quick connection to energy monitor shields and microcontroller expansion boards.

Housing & Board Material: High-grade ABS fire-retardant plastic enclosure with ferrite core, copper coil windings, and integrated 3.5 mm audio jack lead wire.

Technical Specifications:

Input Current Range: 0A - 30A AC RMS.

Output Signal Voltage: 0V - 1.0V AC RMS (1V at 30A).

Non-linearity: ±3%.

Lead Wire Length: Approx. 1.0 m.

Color: Blue Plastic Enclosure with Black Cable.

Usage Advice: Clamp around a single active phase/live conductor (do not clamp around both live and neutral combined); connect the 3.5 mm jack to an analog sampling circuit or energy monitor shield.

Maintenance: Keep the ferrite core contact surfaces clean, dry, and free of dust or metallic particles; ensure the snap latch fully locks when clamped around wires.

Essential Non-Contact Energy Auditing Sensor: Position as a top choice for home energy monitors, smart building power loggers, solar inverter feed-in tracking, and HVAC current diagnostics.

Highlight Built-In Burden Resistor: Emphasize how integrated sampling resistors eliminate the need for external precision burden resistors, outputting a safe 1V voltage signal straight into microcontroller ADCs.
