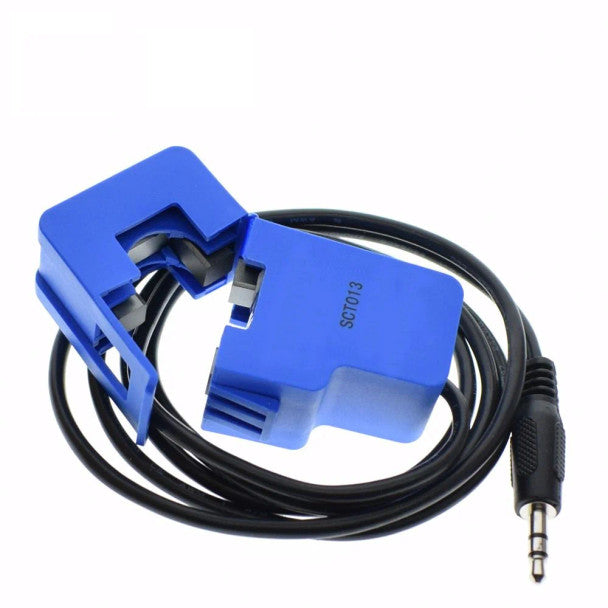

SCT-013-015 Non-Invasive AC Current Clamp Sensor 15A 1V

Split-Core Non-Invasive Design: Features a convenient snap-on split-core latch that clips around active AC conductors without cutting wires or shutting down electrical circuits.

0A to 15A AC Measurement Range: Specifically calibrated to measure single-phase AC line currents up to 15A RMS, ideal for residential appliance profiling and light branch-circuit monitoring.

Built-in Burden Resistor (1V Voltage Output): Integrated with an internal sampling burden resistor that converts induced AC current into a safe 0 - 1V AC voltage output for direct ADC sampling.

High Linearity Ferrite Core: Constructed with high-permeability ferrite core material for accurate linear response and minimal phase shift at 50Hz / 60Hz mains grid frequencies.

Standard 3.5mm Audio Jack Output: Terminated with a 3.5 mm TRS audio plug connector for plug-and-play compatibility with micro-energy logging shields and interface boards.

Housing & Board Material: High-grade ABS fire-retardant plastic enclosure with ferrite core assembly, copper coil windings, and a flexible shielded output cable.

Technical Specifications:

Input Current Range: 0A - 15A AC RMS.

Output Signal Voltage: 0V - 1.0V AC RMS (1V at 15A).

Non-linearity: ± 3%.

Lead Wire Length: Approx. 1.0 m.

Color: Blue Plastic Enclosure with Black Cable.

Usage Advice: Clip around a single live phase wire (do not clamp around live and neutral conductors simultaneously); plug the 3.5 mm jack into an analog sampling circuit or energy monitoring board.

Maintenance: Keep ferrite core contact surfaces clean and dust-free; ensure the snap-latch mechanism is fully clicked shut around the target wire.

Essential Medium-Load AC Audit Transducer: Position as a precision current sensor for smart home energy loggers, HVAC monitoring, solar branch auditing, and individual appliance consumption tracking.

Highlight Built-In Sampling Resistor: Emphasize how the internal burden resistor outputs a safe 1V AC voltage signal directly to microcontrollers without needing extra external resistors.

Recommended Cross-Sell Add-ons: Pair with SCT-013-030 Non-Invasive AC Current Clamp Sensor 30A 1V, SCT-013-000 Non-Invasive AC Current Clamp Sensor 100A 1V, 5A Single-Phase AC Current Sensor, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Current Sensor collection page as your 15A non-invasive AC current clamp.
