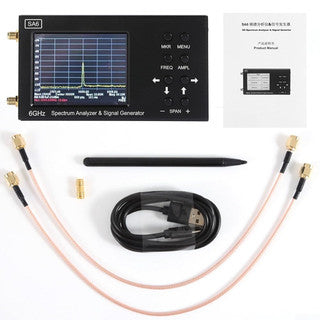

SA6 6GHz Portable Spectrum Analyzer – RF Spectrum Analyzer, Signal Tester, Handheld

Wide Frequency Spectrum Analysis (35MHz – 6GHz): Delivers precise RF signal detection, spectrum monitoring, and signal analysis across an expansive frequency coverage from 35 MHz up to 6 GHz.

Integrated Signal Generator Functionality: Features a built-in tracking signal generator output (35 MHz - 4400 MHz) for measuring RF components, filters, amplifiers, and antenna S-parameters.

Vivid 3.2-Inch Resistive Touchscreen: Bright color display with intuitive touch and stylus navigation for smooth marker adjustments, span sweeps, and frequency adjustments.

Compact Handheld Portability: Lightweight aluminum housing with built-in rechargeable battery power enables untethered RF field measurements, wireless audits, and site surveys.

PC Data Logging & Software Compatibility: Connects via USB to a Windows PC for extended spectrum data analysis, waterfall display visualization, and remote parameter control.

Standard SMA RF Interfaces: Equipped with durable SMA female input and output ports to interface seamlessly with standard RF probes, attenuators, and antennas.

Housing & Enclosure: Rugged, anodized aluminum alloy shell with high-grade SMA RF connectors and an integrated USB charging/data interface port.

Technical Specifications:

Frequency Range: 35MHz - 6GHz.

Signal Generator Output: 35MHz - 4400MHz.

Display: 3.2" Color TFT LCD Touchscreen (320 x 240).

Input Impedance: 50 ohms.

Maximum Input Level: +10 dBm (use external attenuation for higher power signals).

Power Supply: Internal rechargeable lithium battery with USB charging.

Usage & Protection Warning: Do not feed signals exceeding +10dBm directly into the RF input port without an external attenuator to avoid damaging internal mixer circuitry.

Maintenance & Cleaning: Keep SMA connector ports clean and free of metal fragments or dust. Wipe outer metallic body with a soft, dry microfiber cloth.

Essential Portable RF Tool for Wireless Technicians: Position as an indispensable handheld spectrum analyzer for RF engineers, telecommunication technicians, drone system operators, wireless network installers, and ham radio enthusiasts.

Highlight 6GHz Range & Dual Analyzer/Generator Capability: Emphasize its wide 6GHz bandwidth and tracking generator functionality as a cost-effective alternative to bulky, expensive laboratory spectrum analyzers.

Recommended Cross-Sell Add-ons: Pair with P6100 DC-100MHz Passive Oscilloscope Probe, 1M BNC male to Dual crocodile clamp, Oscilloscope test cable, Hantek IDSO1070A WiFi 2-CH 70Mhz Oscilloscope, and DSO2D15 2-Channel + 150MHz 1GSa/s Signal Generator Oscilloscope 2 in 1.

Flagship Portable RF Star: Display prominently on your Oscilloscopes & Generators collection page as a featured high-frequency signal diagnostic instrument.
