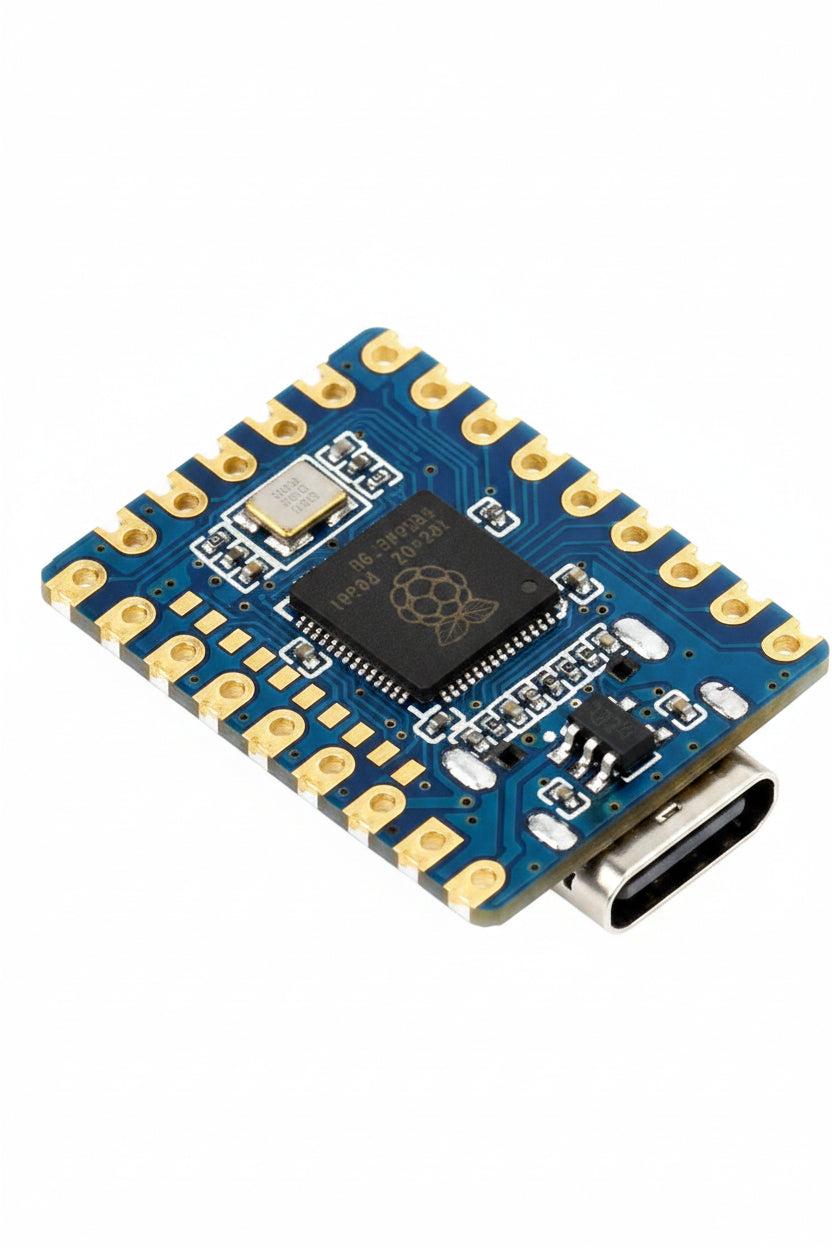

RP2040-Zero Mini Development Board

Raspberry Pi RP2040 Microcontroller: Powered by a dual-core Arm Cortex-M0+ processor operating up to 133 MHz with 264KB of embedded SRAM and 2MB of onboard Flash memory.

Ultra-Compact Pico-Like Form Factor: Designed in a miniature pico-sized footprint, making it ideal for extremely space-constrained embedded projects, wearables, and custom PCB integration.

Modern USB Type-C Connector: Features a reversible USB Type-C port for fast power delivery, reliable firmware flashing, and USB 1.1 Host/Device emulation.

Versatile GPIO Breakout: Castellated board edges allow direct soldering onto carrier boards, providing access to 29 multi-function GPIO pins (including 4 analog inputs and 2 Programmable I/O (PIO) blocks).

Onboard RGB LED & Reset Controls: Includes a user-programmable WS2812 RGB LED for visual status feedback, alongside onboard BOOT and RESET buttons for quick software development workflows.

PCB Composition: Built on a compact, high-density multi-layer FR4 fiberglass circuit board with gold-plated castellated pads for superior SMD surface-mounting and hand soldering.

Static Handling Precautions: Standard electrostatic sensitive device (ESD). Handle the board by its outer edges and use proper ESD grounding or anti-static wrist straps during assembly.

Soldering Guidelines: Exercise caution when soldering headers or direct wiring onto the fine-pitch castellated edges to prevent accidental solder bridges between adjacent pads.

Environmental Limits: Intended for clean, dry operating environments. Protect from dust, humidity, and conductive liquids. Recommended operating temperature range is -20°C to 85°C.

The Ultimate Micro-Sized Pico Alternative: Position this board as a ultra-compact alternative to the standard Raspberry Pi Pico for developers who need RP2040 dual-core performance in a fraction of the physical space.

Software Ecosystem Compatibility: Highlight out-of-the-box support for C/C++ SDK, MicroPython, and CircuitPython to appeal to both beginner coders and advanced embedded system engineers.

Essential Soldering & Accessory Add-ons: Cross-sell 0.1" Male Pin Headers, Soldering Irons/Flux, and USB Type-C Cables so customers have everything required to start prototyping immediately.

Ideal Custom Keyboard & Modding Engine: Pitch this board to custom mechanical keyboard builders and handheld console modders who favor the RP2040 chip in an ultra-miniature footprint.
