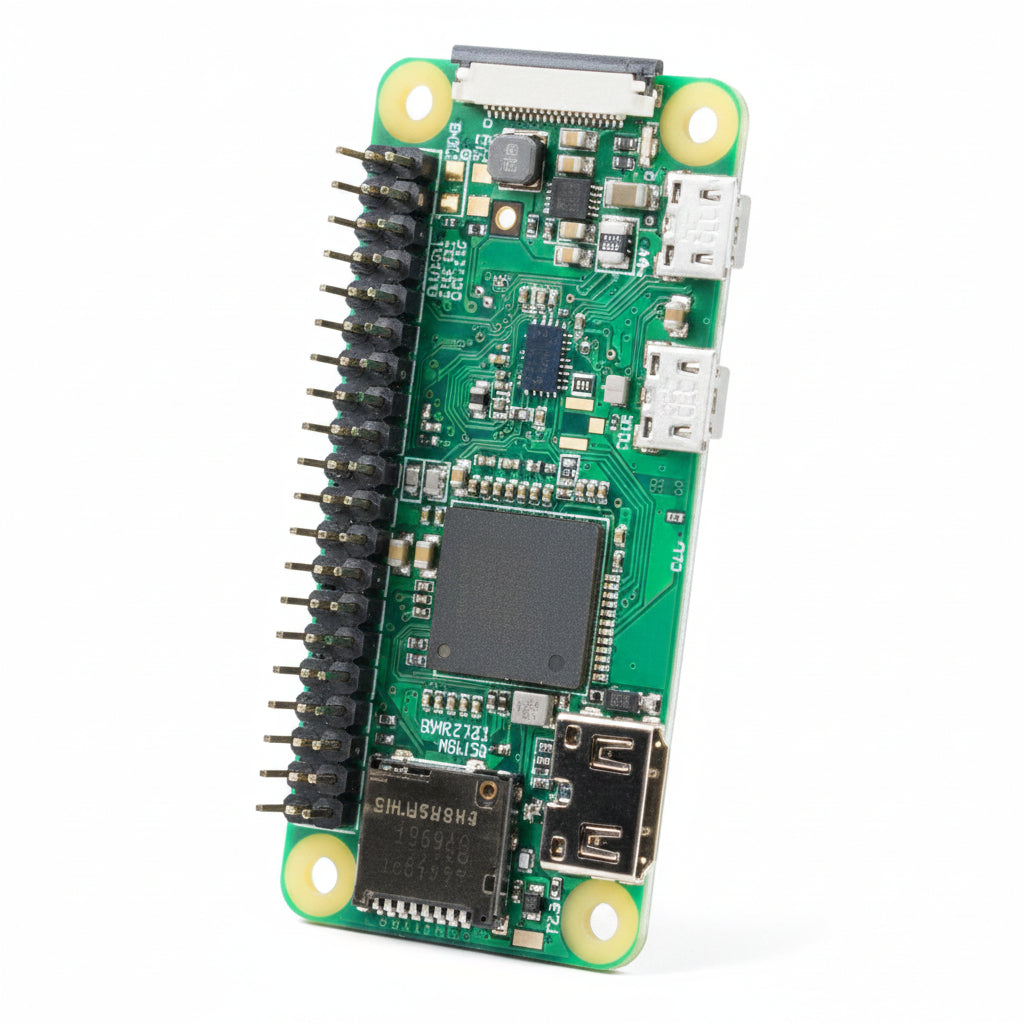

Raspberry Pi Zero WH-Wireless

Broadcom BCM2835 Processor & 512MB RAM: Powered by a 1GHz single-core Arm11 CPU paired with 512MB of LPDDR2 SDRAM, offering ultra-low power consumption for lightweight embedded applications.

Pre-Soldered 40-Pin GPIO Header: Features a factory pre-soldered 40-pin color-coded GPIO header, allowing immediate plug-and-play prototyping without requiring soldering skills.

Onboard Wireless & Bluetooth Connectivity: Includes 800.11 b/g/n wireless LAN and Bluetooth 4.1 / Bluetooth Low Energy (BLE) for seamless network connection and local sensor data transmission.

Ultra-Compact Form Factor: Measuring just 65mm x 30mm x 11.6mm, it delivers a full Linux operating system experience in a miniature, pocket-sized footprint.

Essential Peripheral Connections: Equipped with a mini-HDMI port, micro-USB On-The-Go (OTG) port, micro-USB power port, CSI camera connector, and composite video header pins.

PCB Composition: Engineered on a lightweight multi-layer FR4 fiberglass circuit board with gold-plated solder points for optimal electrical conductivity and durability.

Static Handling Precautions: Electrostatic sensitive device (ESD). Always ground yourself or wear an anti-static wrist strap, and hold the board strictly by its outer plastic edges.

Header Care: Protect the pre-soldered GPIO pins from physical bending or stress during HAT installation and removal to avoid trace lifting on the PCB.

Environmental Limits: Designed for use in dry, indoor environments. Protect from dust, moisture, and conductive liquids. Recommended operating temperature range is 0°C to 50°C.

Power Supply Requirement: Recommend pairing with a quality 5V / 2.0A Micro-USB Power Supply or a regulated battery power expansion shield for portable setups.

Display & USB Adapters: Because of its ultra-compact port array, cross-sell mini-HDMI to Standard HDMI Adapters and Micro-USB OTG Host Cables so users can immediately attach monitors and USB keyboards.

Camera Compatibility: Remind customers that the onboard CSI camera port is smaller than the standard Pi size—recommend adding a Raspberry Pi Zero Camera Cable to connect official Pi camera modules.

Ideal Use Cases: Position as the go-to budget choice for smart home sensors, Pi-hole DNS blockers, low-power IoT field gateways, and wearable electronics projects.
