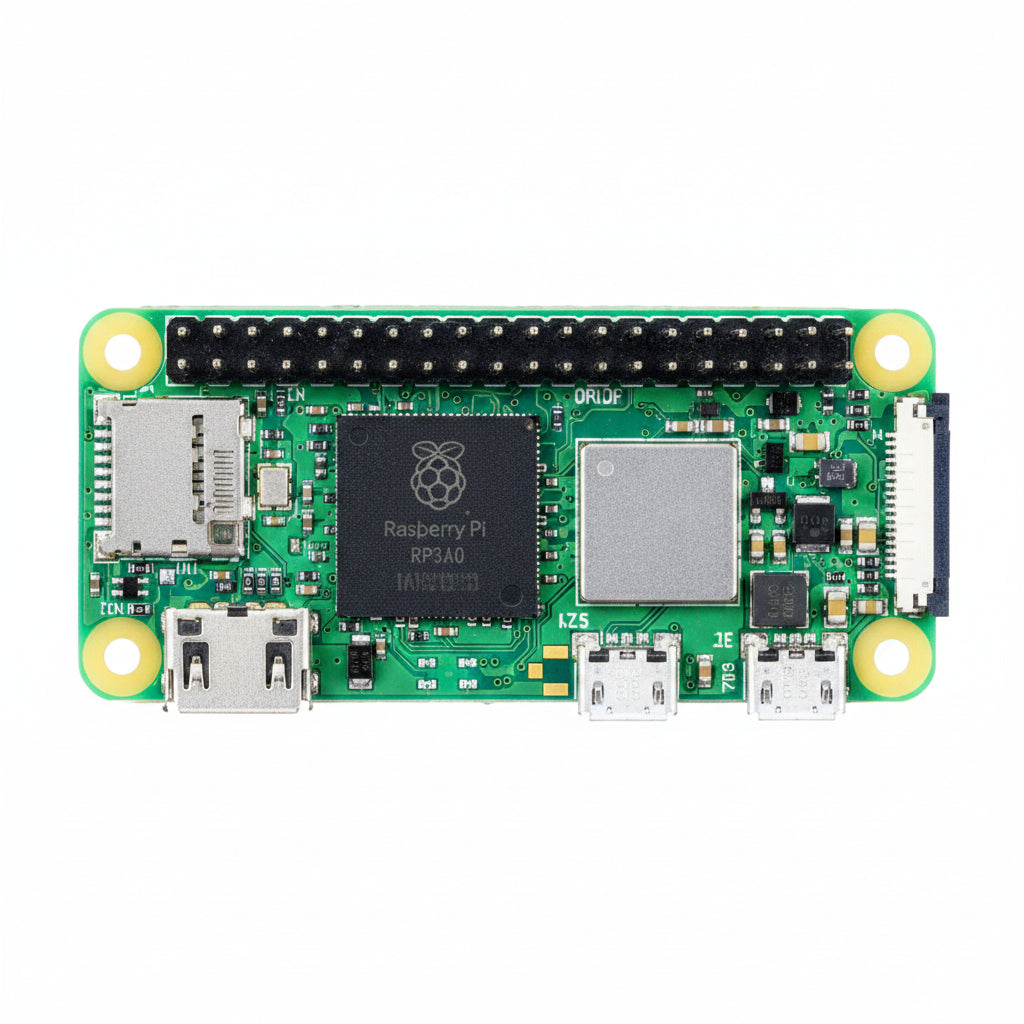

Raspberry Pi Zero 2 WH

Quad-Core RP3A0 System-in-Package: Powered by a 1GHz quad-core 64-bit Arm Cortex-A53 CPU integrated with 512MB of LPDDR2 SDRAM inside a single package, delivering up to 5x the performance of the original Zero W.

Pre-Soldered 40-Pin GPIO Header: Features a factory pre-soldered, color-coded 40-pin GPIO header for immediate, hassle-free plug-and-play connections to HATs, sensors, and breadboards without needing soldering tools.

Built-in Wireless & Bluetooth Connectivity: Equipped with 2.4GHz IEEE 802.11b/g/n wireless LAN and Bluetooth 4.2 / Bluetooth Low Energy (BLE) for effortless network integration and low-power local sensor communication.

Ultra-Compact Form Factor: Measures just 65mm x 30mm x 11.6mm, preserving the exact miniature footprint and mounting hole positions of the Zero series while packing quad-core processing power.

Essential Peripheral IO: Outfitted with a mini-HDMI port (supporting 1080p60 video), a micro-USB OTG port, a micro-USB power connector, and a CSI-2 camera connector for compact vision projects.

PCB & Thermal Structure: Constructed on a dense multi-layer FR4 fiberglass circuit board featuring internal copper layers to effectively dissipate processor heat across the compact board surface.

Static Handling Precautions: Highly sensitive to Electrostatic Discharge (ESD). Ground yourself prior to handling, and hold the unit strictly by its fiberglass outer edges or header insulation to avoid touching bare pins or surface-mount components.

Header Maintenance: Avoid exerting excessive lateral stress or bending forces on the pre-soldered GPIO pins when attaching or removing HATs to prevent lifting trace pads on the circuit board.

Environmental Limits: Designed for clean, dry operating environments. Protect from dust, moisture, and conductive liquids. Recommended safe operating temperature range is 0°C to 50°C.

Power Supply Recommendation: Pair with a reliable 5V / 2.5A Micro-USB Power Supply to ensure stable power delivery, particularly when attached to camera modules or power-hungry USB peripherals.

Essential Cable Accessories: Because of its compact mini-HDMI and micro-USB ports, cross-sell mini-HDMI to HDMI Adapters and Micro-USB OTG Cables so customers can connect standard monitors and peripherals out of the box.

Camera Cable Compatibility: Note that the CSI camera port uses the smaller Zero-style connector. Suggest adding a Raspberry Pi Zero Camera Cable to connect official Raspberry Pi camera modules.

Zero-Solder Prototyping Solution: Position this unit as the ultimate hassle-free choice for educators, beginners, and rapid prototypers who want the quad-core speed of the Zero 2 W with zero soldering required.
