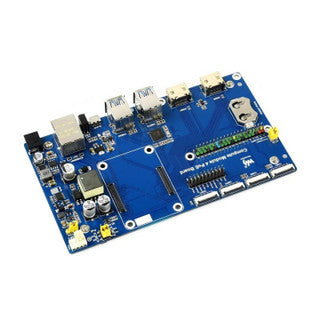

Raspberry Pi Compute Module 4 IO Board With PoE Feature

Complete Breakout Architecture for CM4: Designed to expose all interfaces of the Raspberry Pi Compute Module 4 (CM4), transforming modular compute cards into full-featured industrial prototyping and development stations.

Integrated Power over Ethernet (PoE): Built-in Power over Ethernet support allows both high-speed network connectivity and stable board power delivery through a single RJ45 Ethernet cable.

PCIe Gen 2 Expansion Slot: Features a standard PCI Express Gen 2 x1 socket, enabling direct connection of high-speed NVMe storage, network interface cards, or custom PCIe expansion boards.

Dual 4K HDMI Output: Outfitted with dual full-sized HDMI ports supporting dual-display setups at resolutions up to 4K at 60fps for high-definition monitoring and workstation setups.

Rich Industrial Connectivity: Includes 2x USB 2.0 ports, Gigabit Ethernet, dual MIPI CSI camera connectors, dual MIPI DSI display connectors, RTC with battery socket, and a standard 40-pin GPIO header.

PCB Composition: Built on a heavy-duty, multi-layer FR4 fiberglass circuit board designed for industrial mounting, bench prototyping, and continuous continuous operation.

CM4 Docking & Connector Care: Use care and even pressure when pressing the CM4 dual high-density board-to-board connectors onto the IO board sockets to avoid pin misalignment or bending.

Static Handling Precautions: Highly sensitive to Electrostatic Discharge (ESD). Ground yourself or wear an anti-static wrist strap, and hold the board by its outer edges during installation.

Environmental Limits: Operating temperature range is 0°C to 50°C. Protect the open carrier board from conductive metal dust, liquids, and condensation while powered.

The Premier Prototyping Platform: Position this carrier board as the ultimate development and staging rig for hardware engineers designing custom baseboards for the Compute Module 4.

PoE & Single-Cable Deployment Pitch: Highlight the built-in Power over Ethernet capability as an ideal feature for remote telemetry, industrial automation hubs, and smart building gateways where minimal wiring is essential.

Essential Companion Add-ons: Cross-sell compatible Raspberry Pi Compute Module 4 (CM4) units, CR1220 RTC Coin Cell Batteries, PCIe NVMe Adapters, and 12V DC Power Supplies.

Industrial & Commercial Audience: Target system integrators, embedded engineers, and industrial IoT developers needing a turn-key carrier board to evaluate CM4 processing performance.
