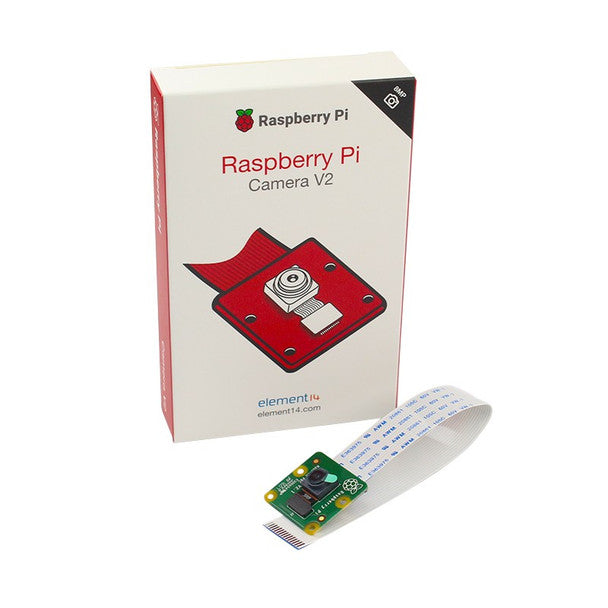

Raspberry Pi Camera V2 8MP

Sony IMX219 8-Megapixel Sensor: Equipped with a high-definition image sensor capable of capturing 3280 x 2464 pixel static photos and 1080p30, 720p60, and 640x480p90 video streaming.

Integrated IR Cut Filter: Features a built-in infrared-cut filter for true-to-life daylight color reproduction, making it ideal for standard photography and daytime security applications.

Fixed Focus Optical Lens: Factory-fitted with an adjustable fixed-focus lens module to ensure sharp image rendering across standard optical distances.

Direct CSI-2 Ribbon Connection: Plugs directly into the dedicated Camera Serial Interface (CSI) port on Raspberry Pi boards via a flexible ribbon cable, ensuring high-bandwidth throughput without occupying USB ports.

Ultra-Compact Footprint: Extremely small form factor (approx. 25mm x 24mm x 9mm) weighing under 3 grams, perfect for lightweight drones, compact enclosures, and space-constrained robotics.

Lens & Sensor Care: Clean the optical lens gently using a clean, soft microfiber cloth or specialized lens paper. Keep the protective plastic cap installed when the module is not in use.

Ribbon Cable Handling: Open and lock the CSI connector latch gently during installation. Avoid sharp bends or excessive twisting of the flexible flat ribbon cable.

Static Handling Precautions: Standard electrostatic sensitive device (ESD). Handle the board by its fiberglass outer edges and maintain grounding precautions to prevent ESD damage to the CMOS sensor.

Environmental Limits: Recommended operating temperature range is -20°C to +60°C. Protect the bare circuit board from moisture, rain, and conductive dust with an enclosure.

Essential Daytime Prototyping Module: Position as the core go-to camera module for everyday Raspberry Pi imaging, computer vision experiments, time-lapse photography, and video streaming.

Night-Vision Alternative Pitch: Direct customers looking for night vision or infrared imaging to the Raspberry Pi 8MP NOIR Night Vision Camera variant.

Recommended Accessories: Cross-sell Camera Enclosures/Mounting Cases, Extended CSI Ribbon Cables, and Raspberry Pi Zero Camera Cable Adapters to ensure full compatibility across form factors.

Software Ecosystem: Highlight complete out-of-the-box support across Raspberry Pi OS using modern camera libraries (libcamera and Picamera2).
