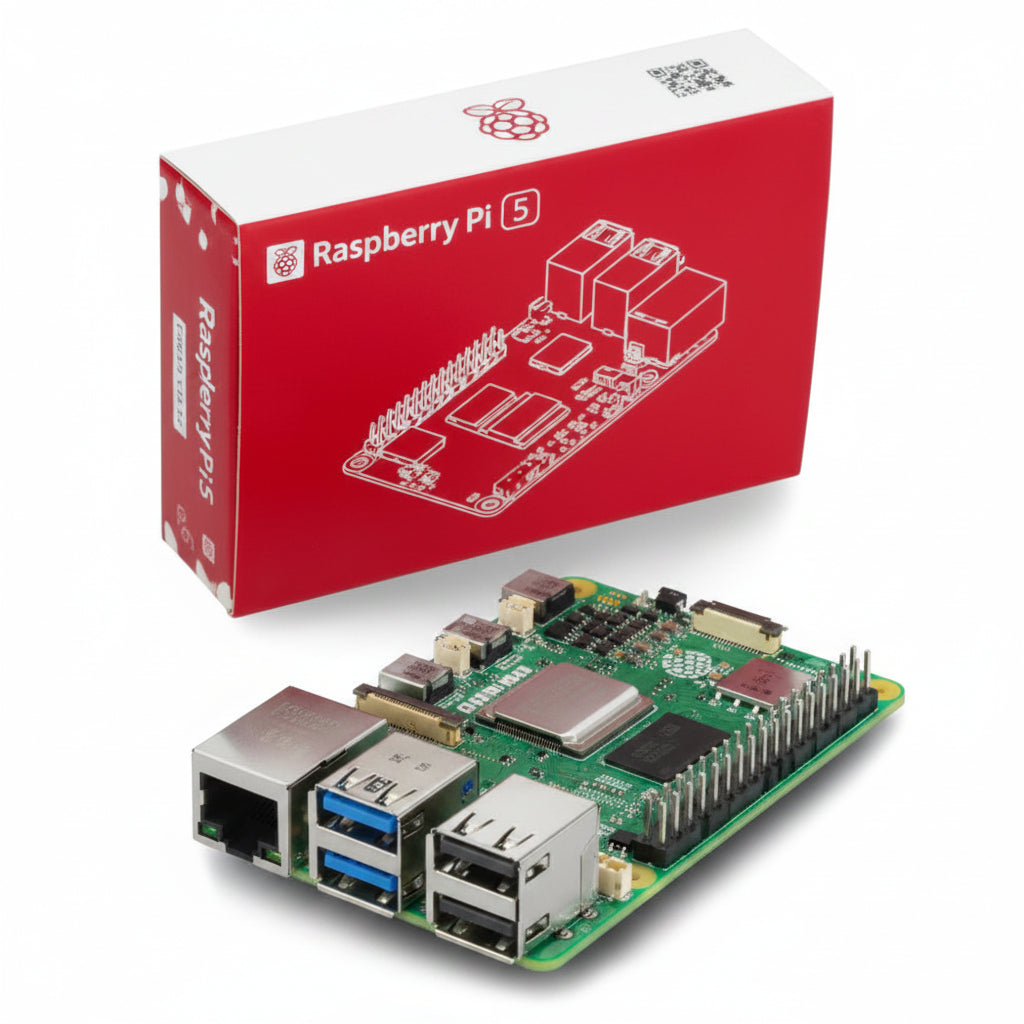

Raspberry Pi 5 Model 2GB RAM

2GB LPDDR4X-4267 RAM: A streamlined, cost-effective memory capacity ideal for dedicated single-task applications, lightweight server hosting, retro gaming, and smart home automation hubs.

Broadcom BCM2712 Processor: Powered by a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with cryptography extensions, delivering the same massive $2\times$ to $3\times$ processing performance jump over the Raspberry Pi 4 as its higher-spec siblings.

Dual 4Kp60 Video Output: Equipped with an 800MHz VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.2, capable of pushing dual 4K resolution displays simultaneously at 60Hz with HDR.

Next-Gen I/O & Speed Expansion: Includes a single-lane PCIe 2.0 interface for blazing-fast NVMe SSD storage connections, an upgraded high-speed microSD card slot (SDR104), and doubled USB 3.0 bandwidth (5Gbps).

Smart Convenience: Features an integrated dedicated on/off power button, a built-in Real-Time Clock (RTC) connection, and a dedicated PWM fan header.

PCB Composition: Built on a premium, high-density multi-layer FR4 printed circuit board with gold-plated contact points for optimal conductivity and structural longevity.

Static Handling Precautions: Highly sensitive to Electrostatic Discharge (ESD). Always ground yourself or use an anti-static wrist strap, and handle the board strictly by its outer edges when powered or exposed.

Thermal Management: While the 2GB variant runs slightly cooler during idle states than the 16GB model, the high-performance BCM2712 SoC still runs warm under load. An active cooler, heatsink, or fan-assisted enclosure is highly recommended to prevent thermal throttling.

Environmental Limits: Intended for deployment in clean, dry environments. Avoid contact with moisture, conductive dust, or liquids. Safe operating temperature range is between 0°C and 70°C.

Power Supply Requirement: Standard 5V USB-C chargers will limit performance. It is highly recommended to pair this board with the Official Raspberry Pi 27W USB-C PD Power Supply to deliver the 5V / 5A required for full downstream USB and PCIe functionality.

Entry-Level Project Companion: This 2GB model is a perfect match for lightweight, headless projects. Cross-sell it with a fast microSD Card (Class 10 / A2) to get users up and running quickly without the immediate need for a costly SSD.

New Cable Standards: Note that the camera and display interfaces have been updated to a smaller, denser format. Customers will need dedicated Raspberry Pi 5 Camera/Display Adapter Cables to connect older Pi camera modules or official touchscreens.

Enclosure Compatibility: Because the Ethernet/USB port layout has swapped and new connectors have been added, this board will not fit Raspberry Pi 4 cases. Ensure you bundle this with a compatible Raspberry Pi 5 Case.
