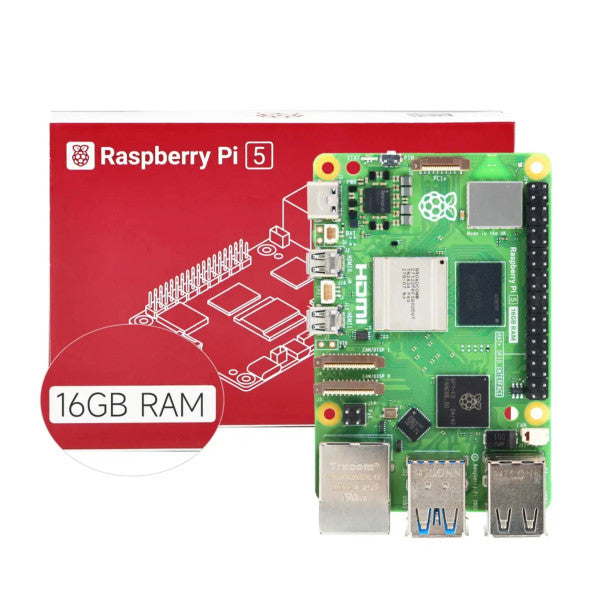

Raspberry Pi 5 Model 16GB RAM

16GB LPDDR4X-4267 RAM: Massive memory capacity designed for heavy multitasking, running complex AI/ML workloads, local large language models (LLMs), server virtualization, and demanding data compilation.
Broadcom BCM2712 Processor: Powered by a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with cryptography extensions, delivering a 2 times to 3 times processing performance jump over the Raspberry Pi 4.
Dual 4Kp60 Video Output: Equipped with an 800MHz VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.2, capable of pushing dual 4K resolution displays simultaneously at 60Hz with HDR.
Next-Gen I/O & Speed Expansion: Includes a single-lane PCIe 2.0 interface for blazing-fast NVMe SSD storage connections, an upgraded high-speed microSD card slot (SDR104), and doubled USB 3.0 bandwidth (5Gbps).
Smart Convenience: Features an integrated dedicated on/off power button, a built-in Real-Time Clock (RTC) connection, and a dedicated PWM fan header.

PCB Composition: Built on a premium, high-density multi-layer FR4 printed circuit board with gold-plated contact points for optimal conductivity and structural longevity.
Static Handling Precautions: Highly sensitive to Electrostatic Discharge (ESD). Always ground yourself or use an anti-static wrist strap, and handle the board strictly by its outer edges when powered or exposed.
Thermal Management: The high-performance BCM2712 SoC runs warm under load. An active cooler, heatsink, or fan-assisted enclosure is required to prevent thermal throttling and ensure smooth operation.
Environmental Limits: Intended for deployment in clean, dry environments. Avoid contact with moisture, conductive dust, or liquids. Safe operating temperature range is between 0°C and 70°C.

Power Supply Requirement: Standard 5V USB-C chargers will limit performance. It is highly recommended to pair this board with the Official Raspberry Pi 27W USB-C PD Power Supply to deliver the 5V / 5A required for full downstream USB and PCIe functionality.
Storage Performance: Unlock the board's true potential by cross-selling the Raspberry Pi M.2 HAT+ alongside an NVMe M.2 SSD to replace standard microSD boot speeds with rapid solid-state performance.
New Cable Standards: Note that the camera and display interfaces have been updated to a smaller, denser format. Customers will need dedicated Raspberry Pi 5 Camera/Display Adapter Cables to connect older Pi camera modules or official touchscreens.
Enclosure Compatibility: Because the Ethernet/USB port layout has swapped and new connectors have been added, this board will not fit Raspberry Pi 4 cases. Ensure you bundle this with a compatible Raspberry Pi 5 Case.
