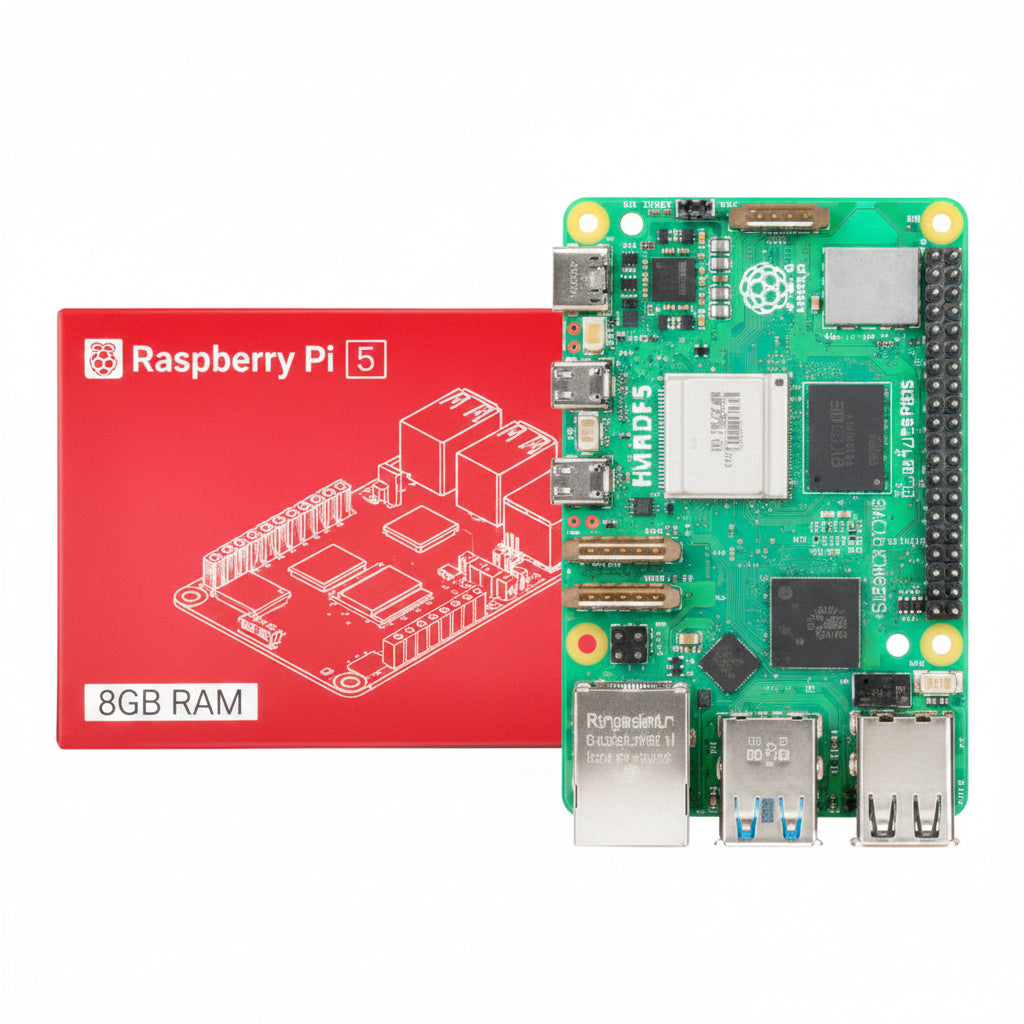

Raspberry Pi 5 Model 8GB RAM

8GB LPDDR4X-4267 RAM: High-capacity memory that serves as the ultimate sweet spot for power users, offering plenty of overhead for compiling large codebases, virtualization, heavy multitasking, and running local database or web servers.

Broadcom BCM2712 Processor: Powered by a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with cryptography extensions, delivering a massive 2x to 3x processing performance jump over the Raspberry Pi 4.

Dual 4Kp60 Video Output: Equipped with an 800MHz VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.2, capable of pushing dual 4K resolution displays simultaneously at 60Hz with HDR.

Next-Gen I/O & Speed Expansion: Includes a single-lane PCIe 2.0 interface for blazing-fast NVMe SSD storage connections, an upgraded high-speed microSD card slot (SDR104), and doubled USB 3.0 bandwidth (5Gbps).

Smart Convenience: Features an integrated dedicated on/off power button, a built-in Real-Time Clock (RTC) connection, and a dedicated PWM fan header.

PCB Composition: Built on a premium, high-density multi-layer FR4 printed circuit board with gold-plated contact points for optimal conductivity and structural longevity.

Static Handling Precautions: Highly sensitive to Electrostatic Discharge (ESD). Always ground yourself or use an anti-static wrist strap, and handle the board strictly by its outer edges when powered or exposed.

Thermal Management: The high-performance BCM2712 SoC runs warm under load. An active cooler, heatsink, or fan-assisted enclosure is required to prevent thermal throttling and ensure sustained high-speed performance.

Environmental Limits: Intended for deployment in clean, dry environments. Avoid contact with moisture, conductive dust, or liquids. Safe operating temperature range is between 0°C and 70°C.

Power Supply Requirement: Standard 5V USB-C chargers will limit performance. It is highly recommended to pair this board with the Official Raspberry Pi 27W USB-C PD Power Supply to deliver the 5V / 5A required for full downstream USB and PCIe functionality.

The Pro-Developer Choice: Position this 8GB model as the ideal option for developers, sysadmins, and hardware hackers who need robust performance and maximum multitasking overhead without the specialty price point of the 16GB model.

New Cable Standards: Note that the camera and display interfaces have been updated to a smaller, denser format. Customers will need dedicated Raspberry Pi 5 Camera/Display Adapter Cables to connect older Pi camera modules or official touchscreens.

Enclosure Compatibility: Because the Ethernet/USB port layout has swapped and new connectors have been added, this board will not fit Raspberry Pi 4 cases. Ensure you bundle this with a compatible Raspberry Pi 5 Case.
