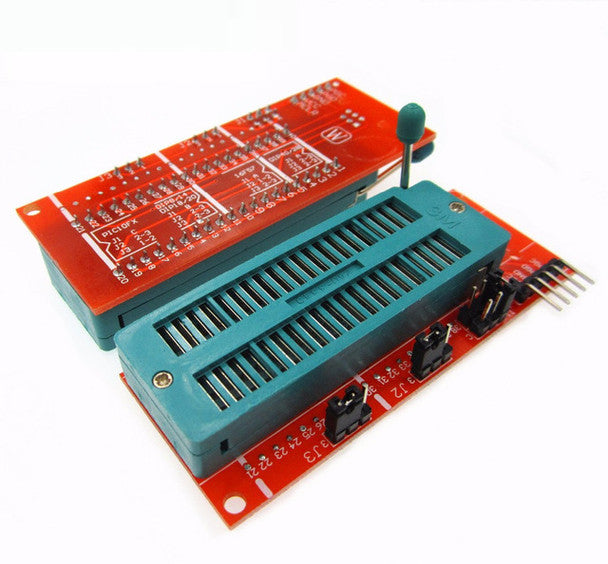

PICKIT 3 Programming IC Socket Adapter

Universal 40-Pin ZIF Socket: Integrated zero-insertion-force (ZIF) lever socket enables fast chip insertion, locking, and extraction without bending microcontroller legs.

Multi-Package PIC Support: Configured with dedicated jumper positions to program 8-pin, 14-pin, 18-pin, 20-pin, 28-pin, and 40-pin DIP-packaged Microchip PIC microcontrollers.

Direct PICKIT 2 / PICKIT 3 Interface: Standard 6-pin ICSP pin header fits directly onto PICKIT 2, PICKIT 3, PICKIT 3.5+, and PICKIT 4 debuggers for plug-and-play operation.

Pin Configuration Routing: Clear silk-screened board markings guide jumper placement (J1, J2, J3) for accurate IC family pin mapping (V_PP, V_DD, GND, PGD, PGC).

External Header Breakout: Includes external header pins to access ICSP signal lines for monitoring or connecting external target circuit boards.

Module Construction: Built on a double-sided FR-4 glass epoxy printed circuit board with gold-plated contacts, high-durability ZIF lever, and standard 2.54mm pin headers.

Operating Voltage & Logic: Operates logic and programming lines on 3.3V or 5V DC supplied directly through the connected PICKIT programmer.

Handling Precautions: Always lift the ZIF lever completely before inserting or removing target ICs. Verify jumper positions match chip pin counts before applying programming power.

Environmental Limits: Operating temperature range spans -20°C to +70°C. Keep protected from static discharge, metallic dust, and liquid moisture.

Essential Partner for PICKIT Programmers: Position as the ultimate convenience companion for PICKIT 2/3/4 users, eliminating breadboard wire clutter when flashing DIP chips.

Solves Multi-Chip Batch Programming Bottlenecks: Highlight how easily users can swap microcontrollers of different pin counts using the single adjustable ZIF platform.

Recommended Cross-Sell Add-ons: Pair with PICKIT 3.5+ Programmers, PIC16F877A / PIC18F Series MCUs, and Dupont Jumper Wires.

Ideal for Electronics Labs & Prototyping: Perfect choice for academic microelectronics classes, embedded development benches, and production flashing jigs.
