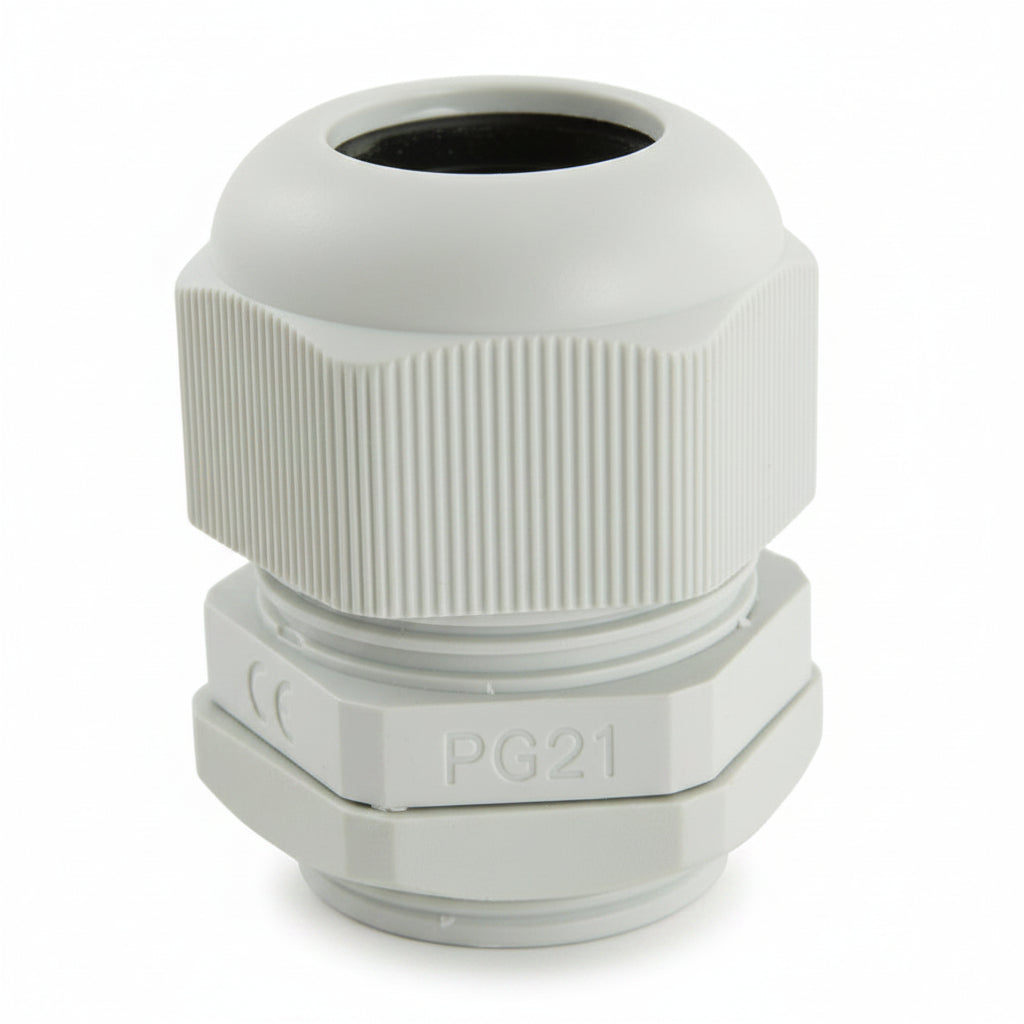

PG21 Cable Waterproof Gland Connector

Extra-Large-Diameter Cable Accommodation: Engineered to clamp and seal heavy-duty cables ranging from 13mm to 18mm in diameter (28.3mm thread mounting diameter), catering to high-current power feeds and dense industrial wiring harnesses.

IP68 Industrial Waterproof & Dustproof Seal: Provides complete ingress protection against water immersion, high-pressure spray, dust, and airborne contaminants, maintaining internal safety in extreme conditions.

Integrated Rubber Washer & Locknut Seal: Features a resilient internal NBR rubber washer and heavy-duty locknut gasket that form a 360° airtight seal around entry cutouts and thick cable jacketing.

Robust Mechanical Strain Relief: Internal claw clamping jaw absorbs axial pulling forces and heavy mechanical vibrations, protecting interior screw terminals and solder points from wire detachment and stress.

Flame-Retardant Polyamide Nylon (PA66) Body: Constructed from high-strength PA66 polyamide plastic (UL94V-2 rated) that resists physical impacts, chemical exposure, oils, and long-term UV exposure.

Tool-Free Threaded Pass-Through Design: Threaded body construction allows quick hand-tightening or wrench securing through standard panel knockouts without requiring specialized installation tools.

Body & Locknut Material: Industrial-grade polyamide nylon (PA66).

Sealing Gasket Material: High-density NBR rubber sealing ring.

Technical Specifications:

Model / Thread Size: PG21 (28.3mm outer thread diameter).

Cable Range: 13mm - 18mm.

Ingress Rating: IP68 watertight and dustproof.

Weight: 0.05 kg.

Color: Industrial Light Gray / Off-White.

Usage Advice: Pass cable through the dome nut and main body before terminating wires; tighten the cap until the internal rubber sleeve forms a tight, visible compression seal around the outer cable jacket.

Maintenance: Periodically check external seals during routine enclosure inspections; clean away dust and environmental debris using a soft damp cloth.

Essential High-Capacity Enclosure Fitting: Position as the ultimate wide-bore entry fitting for primary high-current DC battery feeds, main AC supply lines, commercial inverter enclosures, and heavy industrial automation boxes.

Highlight Maximum Cable Diameter & IP68 Protection: Emphasize the ability to route thick, high-capacity wiring lines into enclosures while maintaining strict IP68 dustproof and waterproof integrity.

Recommended Cross-Sell Add-ons: Pair with PG11 Cable Waterproof Gland Connector, PG16 Cable Waterproof Gland Connector, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Battery Insulations & Cable Gland collection page under heavy-duty waterproof cable management fittings.
