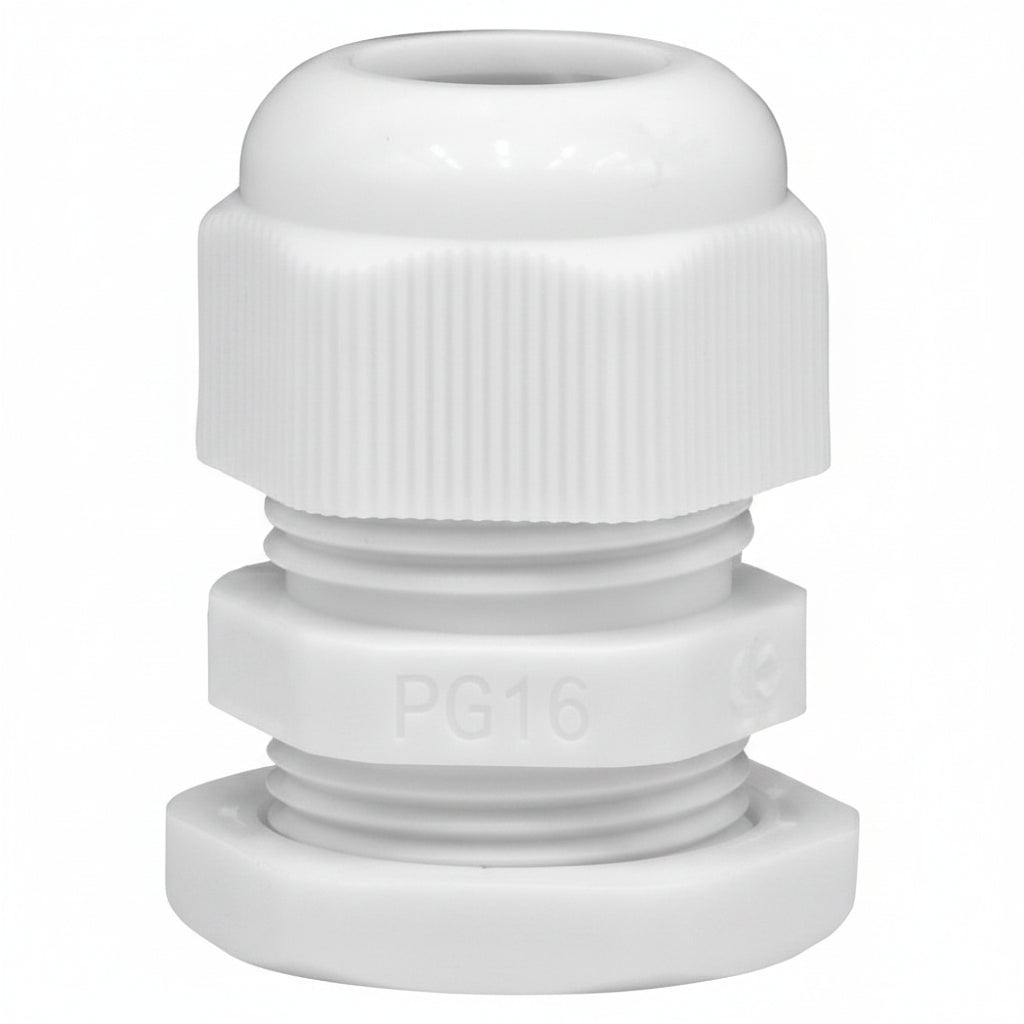

PG16 Cable Waterproof Gland Connector

Large-Diameter Cable Accommodation: Designed to securely clamp and seal cables ranging from 10mm to 14mm in diameter (22.5mm thread mounting diameter), making it ideal for multi-conductor power leads and high-capacity wiring.

IP68 Waterproof and Dustproof Protection: Provides absolute seal integrity against moisture, dust, chemical splashes, and environmental grime, ensuring long-term operational safety in demanding environments.

Flexible Internal Rubber Gasket: Includes a precision-molded internal rubber washer and locknut sealing ring that forms an airtight 360° environmental barrier around entry holes and outer cable jackets.

Integrated Heavy-Duty Strain Relief: Built-in internal clamping claws grip the cable jacket tightly to absorb axial pulling tension and mechanical vibrations, protecting interior terminal connections from stress and wire fatigue.

High-Grade Polyamide Nylon (PA66) Construction: Molded from durable, flame-retardant polyamide plastic (UL94V-2 rated) that resists mechanical impact, oil exposure, and UV degradation.

Simple Threaded Installation: Features a threaded body design for effortless hand-tightening or wrench securing through standard panel knockouts without requiring specialized installation tools.

Body & Locknut Material: High-durability polyamide nylon (PA66).

Sealing Gasket Material: High-density NBR rubber sealing ring.

Technical Specifications:

Model / Thread Size: PG16 (22.5mm outer thread diameter).

Cable Range: 10mm - 14mm.

Ingress Rating: IP68 watertight and dustproof.

Color: Industrial Light Gray / Off-White.

Usage Advice: Pass cable through the cap and body before securing connections, then hand-tighten the dome nut firmly until the rubber gland compresses evenly around the outer jacket.

Maintenance: Regularly inspect external seals during enclosure maintenance; wipe clean of dust, oil, or debris using a soft damp cloth.

Essential Heavy-Duty Cable Routing Solution: Position as a robust watertight pass-through fitting for primary DC battery lines, inverter wiring, outdoor industrial panels, and heavy power distribution boxes.

Highlight Heavy Cable Capacity & IP68 Sealing: Emphasize the ability to route thick, heavy-gauge cables safely through enclosure walls while maintaining IP68 dust- and water-tight integrity.

Recommended Cross-Sell Add-ons: Pair with PG11 Cable Waterproof Gland Connector, PG21 Cable Waterproof Gland Connector, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Battery Insulations & Cable Gland collection page under waterproof cable management fittings.
