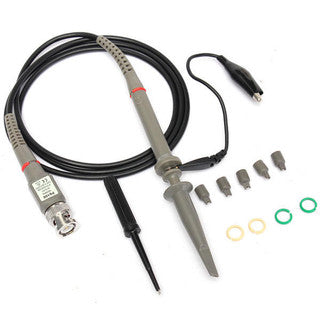

P6100 DC-100MHz Passive Oscilloscope Probe

100MHz Wide Bandwidth Passive Probe: Delivers accurate signal transmission with up to 100MHz bandwidth, suitable for high-frequency oscilloscope measurement across digital and analog circuits.

Selectable 1X / 10X Attenuation Switch: Built-in slide switch allows easy toggling between 1X (0 - 6MHz) and 10X (0 - 100MHz) attenuation ratios to match signal amplitude requirements.

Integrated Probe Calibration Trimmer: Features an adjustable high-frequency compensation capacitor trimmer screw to fine-tune pulse response and ensure flat frequency curve alignment.

Removable IC Protection Tip & Hook: Includes a detachable spring hook clip for secure component gripping along with IC insulation tip caps to prevent accidental short circuits during tight pin probing.

Color-Coded Marker Rings: Comes with interchangeable multi-color coding rings for quick channel identification when operating multi-probe oscilloscope setups.

Standard Universal BNC Termination: Compatible with all standard 50 ohms and 1M ohms BNC input interfaces across digital and analog oscilloscopes.

Probe & Lead Construction: Reinforced high-flex coaxial cable with a molded BNC strain relief boot, insulated stainless steel probe tip, and removable grounding alligator clip.

Technical Specifications:

Bandwidth: DC - 6 MHz (1X mode), DC - 100 MHz (10X mode).

Attenuation Ratio: 1X / 10X.

Input Resistance: 1M ohms -+ 2% (1X), 10M ohms -+ 2% (10 X).

Input Capacitance: 1X: 70pF - 120pF, 10X: 14pF - 18pF.

Compensation Range: 10pF - 35pF.

Maximum Input Voltage: 1X: 200V DC + Peak AC, 10X: 600 V DC + Peak AC.

Usage & Calibration Advice: Always perform low-frequency probe compensation using your oscilloscope's 1kHz square wave test terminal prior to taking measurements.

Maintenance & Cleaning: Keep the probe tip and grounding clip clean and free of flux debris. Wipe cable jacketing with a soft, dry microfiber cloth.

Essential Everyday Oscilloscope Accessory: Position as a fundamental, high-reliability replacement or expansion probe for electronics technicians, hobbyists, repair labs, and engineering students.

Highlight Dual 1X/10X Attenuation & High Bandwidth: Emphasize its high 100 MHz performance and dual attenuation modes as a versatile, low-cost essential for any test bench.

Recommended Cross-Sell Add-ons: Pair with 1M BNC male to Dual crocodile clamp, Oscilloscope test cable, UTD2102CEX+ 2 Channels Digital Storage Oscilloscope, FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator, and DSO2D15 2-Channel + 150MHz 1GSa/s Signal Generator Oscilloscope 2 in 1.

Top-Selling Bench Accessory Star: Feature prominently in your Oscilloscopes & Generators collection as a primary probe accessory.
