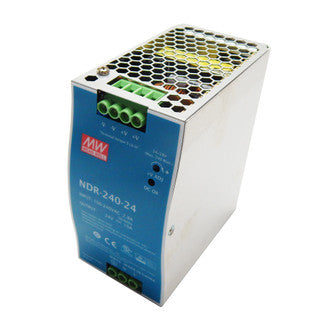

NDR-240-24 24V DC Output 240W 24V 10A Power Supply

Heavy-Duty 240W Power Output: Delivers a continuous, highly stable 24V DC output up to 10A (240W max), built for demanding industrial automation, motor drives, and heavy power loads.

Compact TS-35 DIN Rail Mount: Easily mounts onto standard TS-35/7.5 or TS-35/15 DIN rails, featuring a slim 63mm profile that saves critical rail space inside control cabinets.

Universal AC Input & Built-in PFC: Accepts a wide input voltage range of 90V–264V AC (47–63Hz) with high operating efficiency (88.5%) and active/passive Power Factor Correction (PFC).

Fine-Tuning Voltage Adjustment: Onboard front potentiometer (V_ADJ) enables output calibration (24V – 28V) to offset line resistance and voltage drop over long cable runs.

Robust Metal Enclosure: Fully metallic, heavy-duty housing engineered with passive convection cooling for reliable, 100% fan-less continuous operation.

Comprehensive Protective Suite: Integrated safety mechanisms guard against output short circuits, continuous current overloads, over-voltage spikes, and internal over-temperature conditions.

Housing & Casing Style: Heavy-duty vented metallic casing engineered for TS-35 DIN-rail mounting and maximum passive thermal dissipation.

Contact & Terminal Style: Touch-safe, high-current screw terminal block connectors (AC Input: L, N, FG; DC Output: -V, -V, +V, +V).

Technical Specifications:

Model: NDR-240-24.

Input Voltage: AC 90V – 264V (47 – 63Hz).

Output Voltage: DC 24V (Adjustable 24V – 28V).

Output Current: 0A – 10A Max.

Rated Power: 240W.

Cooling: Free air convection (fan-less design).

Color: Industrial Metallic casing with blue label fascia.

Usage Advice: Size continuous load draw to 80% of total maximum rated capacity (8A / 192W) for long-term continuous duty. Ensure 20mm vertical clearance above and below the cabinet vents for proper natural air circulation.

Maintenance: Keep top and bottom casing grilles clear of dust build-up and metal dust. Designed for indoor control panels and automation enclosures.

Essential High-Power Industrial Hub: Position as the ultimate high-capacity 24V power supply for heavy industrial automation systems, stepper/servo motor drives, PLC control racks, CNC controllers, and large relay panels.

Highlight 10A Capacity & Fan-less 63mm Profile: Emphasize its 10A current output housed in a compact 63mm DIN-rail footprint, delivering high power density with silent convection cooling.
