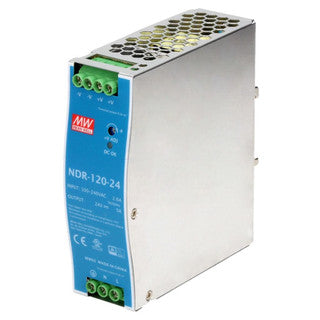

NDR-120-24 24V DC Output 120W 24V 5A Power Supply

Industrial DIN Rail Power Output: Delivers a continuous, highly stable 24V DC output up to 5A (120W max), engineered for industrial automation, control panels, and heavy-duty equipment.

Compact TS-35 DIN Rail Mount: Designed to snap directly onto standard TS-35/7.5 or TS-35/15 DIN rails, featuring a slim 40mm width body that optimizes control panel rail space.

Universal AC Mains Input: Accepts a wide input voltage range of 90V–264V AC (47–63Hz), providing global utility compatibility with high efficiency (89%) and built-in passive PFC.

Fine-Tuning Voltage Trim: Front-accessible potentiometer (V_ADJ) enables precise output voltage adjustment (24V–28V) to offset voltage drops over long cable runs.

Durable Metallic Enclosure: Rugged metal housing engineered with passive convection cooling, allowing full-load operation without noisy mechanical fans.

Comprehensive Protective Suite: Integrated protection guards against short circuits, continuous current overloads, over-voltage spikes, and internal over-temperature conditions.

Housing & Casing Style: Heavy-duty vented metal alloy enclosure designed for TS-35 DIN-rail mounting and efficient thermal dissipation.

Contact & Terminal Style: Touch-safe, high-current screw terminal block connectors (AC Input: L, N, FG; DC Output: -V, -V, +V, +V).

Technical Specifications:

Model: NDR-120-24.

Input Voltage: AC 90V – 264V (47–63Hz).

Output Voltage: DC 24V (Adjustable 24V – 28V).

Output Current: 0A – 5A Max.

Rated Power: 120W.

Cooling: Free air convection (fan-less design).

Color: Industrial Metallic casing with blue label fascia.

Usage Advice: Size continuous loads to 80% of rated capacity (4A / 96W) for continuous long-term operation. Ensure 20mm clearance above and below cabinet vents for natural convective cooling airflow.

Maintenance: Keep top and bottom ventilation grilles free of dust build-up and industrial debris. Designed for indoor control cabinets and automation enclosures.

Essential Industrial Automation Workhorse: Position as the core 24V power solution for industrial PLCs, motor drivers, relays, sensor buses, SCADA systems, and 24V automation equipment.

Highlight Slim 40mm Profile & Fan-less 5A Power: Emphasize its high power density in a narrow footprint, combining heavy-duty metal construction with quiet, fan-less convection cooling.
