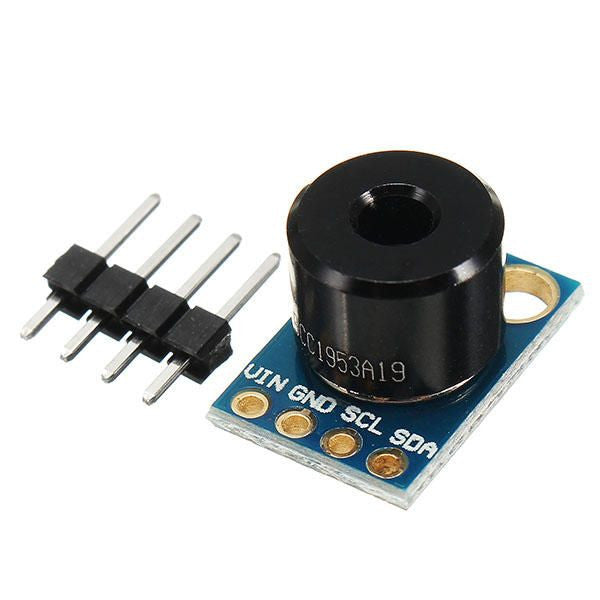

MLX90614ESF Non-Contact Infrared Thermometer

Non-Contact Infrared Sensing Element: Powered by Melexis MLX90614 sensor technology to measure surface temperatures accurately without direct physical contact.

Integrated 17-bit ADC & Powerful DSP: On-chip signal processing and 17-bit analog-to-digital converter deliver high-resolution, low-noise temperature readings.

SMBus / I2C Digital Interface: Communicates using an SMBus digital interface (compatible with standard I2C buses) for straightforward integration into multi-sensor microcontroller setups.

Wide Temperature Measurement Range: Measures ambient temperatures from -40°C to +125°C and target object surface temperatures from -70°C to +380°C.

Compact TO-39 Canister Package: Encased in a metal TO-39 metal canister package with standard lead pins for mounting on breakout boards or custom PCBs.

Housing Material: Sealed metal TO-39 package with an optical infrared filter window and gold-plated header pins.

Technical Specifications:

Sensor Chip: Melexis MLX90614ESF Non-Contact IR Thermometer IC.

Operating Voltage: 3.0V – 5.0V DC.

Ambient Temperature Range: -40°C – +125°C.

Target Object Temperature Range: -70°C – +380°C (-+ 0.5°C accuracy in medical range).

Communication Interface: SMBus / I2C Bus.

Color: Metallic Silver Canister with Gold Pin Headers.

Usage Advice: Ensure target objects fill the sensor's field of view; utilize standard MLX90614 libraries in Arduino IDE or CircuitPython for fast setup.

Maintenance: Keep the central optical IR window clean and free from dust, fingerprints, or condensation to maintain accurate thermal measurement.

Essential Non-Contact Thermal Sensor: Position as a core component for DIY touchless thermometers, human body temperature screening systems, HVAC diagnostic tools, and non-contact industrial testing.

Highlight Non-Contact Convenience & Accuracy: Emphasize how touchless IR sensing avoids cross-contamination and sensor wear in high-temperature or hygienic testing environments.

Recommended Cross-Sell Add-ons: Pair with GY-906 MLX90614ESF Infrared Temperature Sensor, GY-906 MLX90614ESF -DCI Sensor Module, AMG8833 IR Thermal Imager Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Temperature Sensor Modules collection page as your discrete non-contact infrared thermometer IC.
