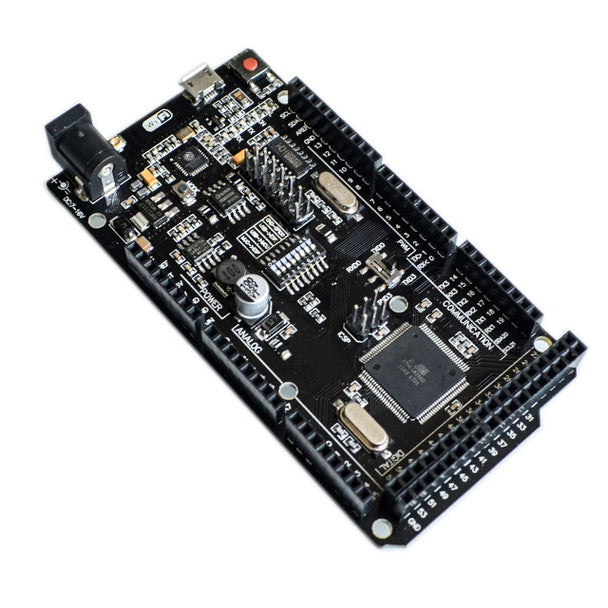

Mega +WiFi R3 ATmega2560+ESP8266

Dual Microprocessor Architecture (ATmega2560 + ESP8266): Integrates the high-capacity ATmega2560 microcontroller alongside an ESP8266 Wi-Fi chip (8Mb / 32Mb flash) on a single, unified Mega R3 board.

Onboard Mode Selection DIP Switches: Features onboard DIP switches to easily configure communication modes—run processors independently, establish serial communication between both MCUs, or flash firmware to either chip.

54 Digital I/O & 16 Analog Inputs: Expands your circuit possibilities with 54 digital input/output pins (15 PWM capable) and 16 analog inputs, perfect for complex robotics and multi-sensor systems.

Integrated 2.4GHz Wi-Fi Connectivity: Built-in $802.11\text{ b/g/n}$ Wi-Fi support enables cloud connection, web server hosting, and remote telemetry without requiring additional shields.

100% Arduino Mega R3 Form Factor: Standard Mega pin layout ensures full hardware compatibility with Arduino Mega expansion shields and modules.

PCB Construction: Built on a multi-layer FR-4 glass epoxy printed circuit board featuring an integrated Wi-Fi PCB antenna and dedicated mode selection switch bank.

Power & Voltage Safety: Powered via Micro-USB (5V DC) or 7V–12V DC through the onboard DC power jack or VIN pin. Ensure proper DIP switch positioning before applying power to avoid pin state conflicts.

Driver Setup & Handling: Utilizes the CH340G USB driver; install the driver on your computer prior to programming. Observe standard anti-static procedures when toggling DIP switches.

Environmental Limits: Operating temperature range is -10°C to +60°C. Keep protected from static discharge, conductive metal particles, and direct moisture.

Ultimate All-in-One IoT Mega Board: Market to developers as a high-capacity, space-saving solution for complex IoT projects that outgrow standard UNO memory limits.

Flexible Mode Control: Highlight the onboard DIP switch matrix which gives developers complete freedom to run the ATmega2560 and ESP8266 independently or networked together.

Recommended Cross-Sell Add-ons: Pair with Micro-USB Cables, Solderless Breadboards & Jumpers, Multi-Channel Relay Modules, and 12V Power Supplies.

Smart Home & Automation Powerhouse: Excellent choice for building large-scale home automation hubs, wireless 3D printer controllers, automated greenhouse systems, and telemetry loggers.
