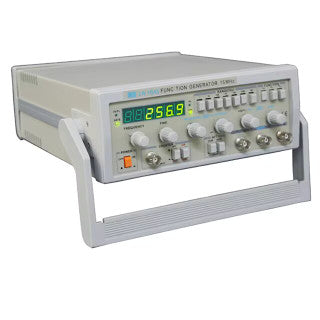

LW1645 15MHz High Frequency Function Generator

15MHz High-Frequency Signal Generation: Delivers stable, continuous high-frequency signal outputs spanning from 0.1 Hz up to 15 MHz for precise circuit design and calibration.

Versatile Standard Waveform Outputs: Generates standard sine wave, square wave, triangle wave, pulse, and ramp signals with controllable amplitude and offset settings.

Variable Duty Cycle & DC Offset Adjustment: Features fine-tune controls for DC bias offset adjustment and variable symmetry/duty cycle control across all primary signal modes.

Built-in Frequency Counter Mode: Integrated multi-digit LED display functions both as an internal output frequency readout and an external signal counter up to high-frequency ranges.

Attenuator & Amplitude Output Control: Features selectable attenuation settings (e.g., 20dB / 40 dB) alongside smooth rotary level dials for clean, distortion-free low-amplitude signal injection.

Rugged Benchtop Form Factor: Compact, durable laboratory casing equipped with a robust folding carry handle that doubles as a angled benchtop tilt stand.

Housing & Terminal Hardware: Industrial-grade metal/ABS composite enclosure with reinforced front-panel BNC output/input jacks and physical tactile pushbuttons.

Technical Specifications:

Frequency Range: 0.1Hz - 15MHz.

Waveform Types: Sine, Square, Triangle, Ramp, and Pulse waves.

Output Impedance: 50 ohms -+ 10%.

Frequency Readout: 6-digit LED display.

Power Supply: 110V / 220V AC selectable main power switch (50/60 Hz).

Usage & Maintenance Advice: Ensure the power input selector switch matches your laboratory mains voltage before connecting to power. Do not inject external voltage into the main BNC signal output.

Cleaning Instructions: Wipe the exterior case clean with a soft, dry microfiber cloth; keep front-panel BNC jacks free of dust and moisture.

Essential Analog Benchtop Laboratory Workhorse: Position as a reliable, easy-to-operate function generator ideal for electronics service benches, educational engineering labs, radio equipment repair, and circuit prototyping.

Highlight High 15MHz Frequency Ceiling & Versatile Attenuation: Emphasize its 15MHz signal ceiling and variable attenuation controls as vital capabilities for high-frequency testing without needing complex menu structures.

Recommended Cross-Sell Add-ons: Pair with 1M BNC male to Dual crocodile clamp, Oscilloscope test cable, P6100 DC-100MHz Passive Oscilloscope Probe, UTD2102CEX+ 2 Channels Digital Storage Oscilloscope, and FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator.

Core Signal Source Highlight: Feature prominently in your Oscilloscopes & Generators collection as a classic high-reliability analog signal source.
