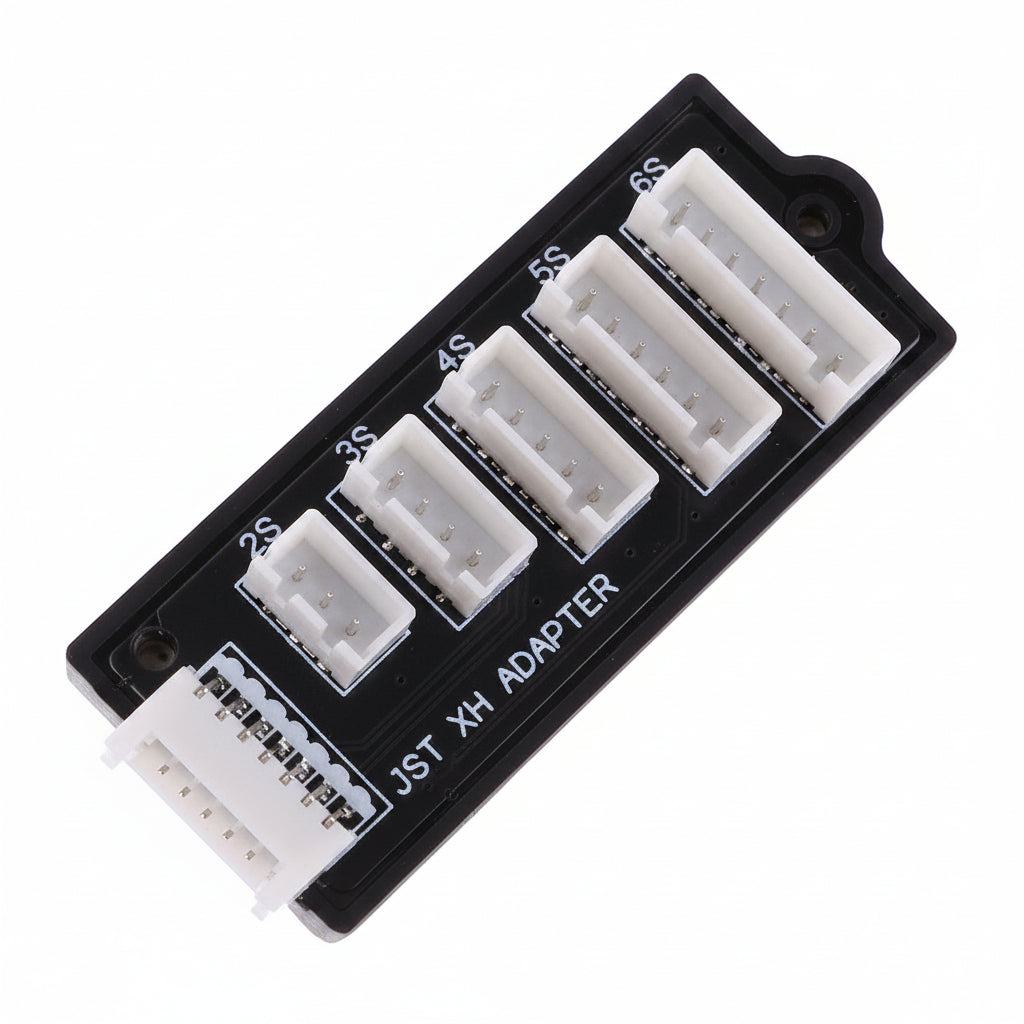

JST-XH 2s-6s LiPo battery charger board

Multi-Cell Balance Expansion Board: Designed to adapt balance leads for multi-cell lithium polymer (LiPo) battery packs ranging from 2S to 6S (7.4V to 22.2V nominal).

Universal JST-XH Connectors: Equipped with standard 2.54mm pitch JST-XH balance sockets for 2S, 3S, 4S, 5S, and 6S battery balance leads.

Broad Balance Charger Compatibility: Compatible with major RC balance chargers (such as IMAX B6, ISDT, ToolkitRC, and similar bench balance charging stations).

Clean & Safe Cable Management: Eliminates direct mechanical wear on your main charger's built-in balance ports by serving as an easy-to-replace balance breakout interface.

Compact & Durable PCB Design: Compact footprint built on an insulated FR-4 glass epoxy board with clear terminal silkscreen labeling for error-free connection.

Flexible Input Harness: Includes a multi-pin ribbon cable harness for quick connection between the adapter board and your battery charger.

Housing & PCB Style: High-density double-sided FR-4 glass epoxy PCB with black soldermask and clear white component markings.

Contact & Terminal Style: Nickel-plated brass pins housed in white heat-resistant JST-XH plastic connectors.

Technical Specifications:

Supported Cell Counts: 2S, 3S, 4S, 5S, and 6S LiPo / LiFe / Li-ion.

Pin Pitch: Standard 2.54mm (0.1").

Connection Type: JST-XH.

Color: Black PCB with white JST-XH sockets.

Usage Advice: Match the pin count of your battery pack's balance lead to the corresponding socket on the board (e.g., plug a 3S pack into the 3S socket). Ensure correct pin orientation before pressing down.

Maintenance: Keep sockets free of dust, dirt, and bent pins. Store in an anti-static bag when not in use.

Essential Balance Port Saver: Position as a low-cost, high-value protective adapter board that prevents wear and tear on expensive RC balance chargers.

Highlight 2S–6S Multi-Pack Compatibility: Emphasize its ability to handle all common RC flight and car pack sizes on a single compact breakout board.
