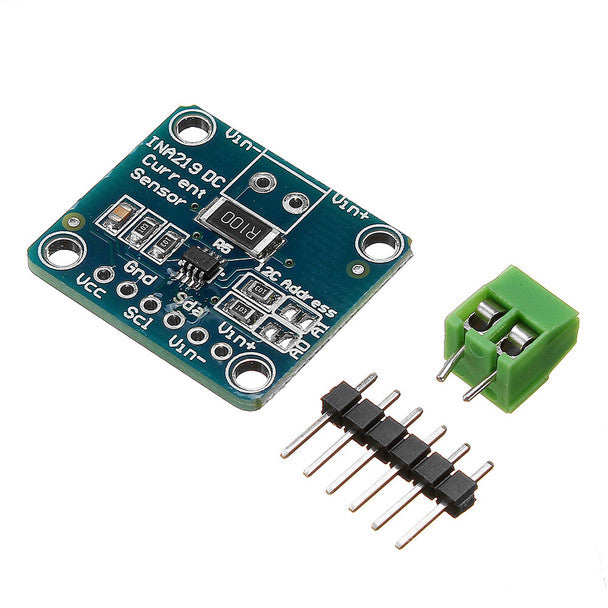

INA219 Bi-directional DC Current Power Supply

Integrated Precision 12-Bit ADC: Features a high-accuracy delta-sigma ADC that measures both shunt voltage drop and bus voltage over a wide operating range.

Bi-Directional High-Side DC Monitoring: Monitors current flow and bus voltage up to +26V DC in both charging and discharging directions on high-side power rails.

Direct I2C / SMBus Digital Output: Communicates data directly over I^2C with up to 128 programmable slave addresses, offloading math and ADC sampling from the main host MCU.

Onboard 0.1 Ohm Precision Shunt Resistor: Equipped with an R100 (0.1 Ω ) 1% sensing resistor capable of handling currents up to ± 3.2A with minimal thermal drift.

Programmable Calibration & Power Savings: Features configurable averaging modes, bus voltage ranges (16V or 32V), and power-down sleep modes for low-power IoT designs.

Housing & Board Material: High-grade FR-4 glass-epoxy PCB with surface-mount INA219 IC, 0.1Ω shunt resistor, screw terminal block, and gold/tin-plated pin headers.

Technical Specifications:

Operating Voltage (V_CC): 3.0V - 5.5V DC.

Target Bus Voltage Range (V_BUS): 0V - +26V DC.

Max Continuous Current: ± 3.2A DC.

Communication Protocol: I²C / SMBus (SCL, SDA).

Color: Blue PCB with Green Terminal Block and Silver Pins.

Usage Advice: Connect VCC (3.3V-5V), GND, SCL, and SDA to your microcontroller; wire your DC power supply and load in-line across the screw terminal block (VIN+ / VIN-).

Maintenance: Keep terminal block screws properly tightened; handle with static-safe procedures and keep board free of moisture, oil, and metallic filings.

Essential High-Side DC Power Telemetry Module: Position as a standard digital current and voltage sensor for solar battery charge logging, USB power testing, quadcopter telemetry, and embedded robotics power monitoring.

Highlight Direct Digital Power Calculations: Emphasize how direct I²C telemetry and internal multiplication deliver current (mA), voltage (V), and power (mW) metrics directly without CPU floating-point overhead.
