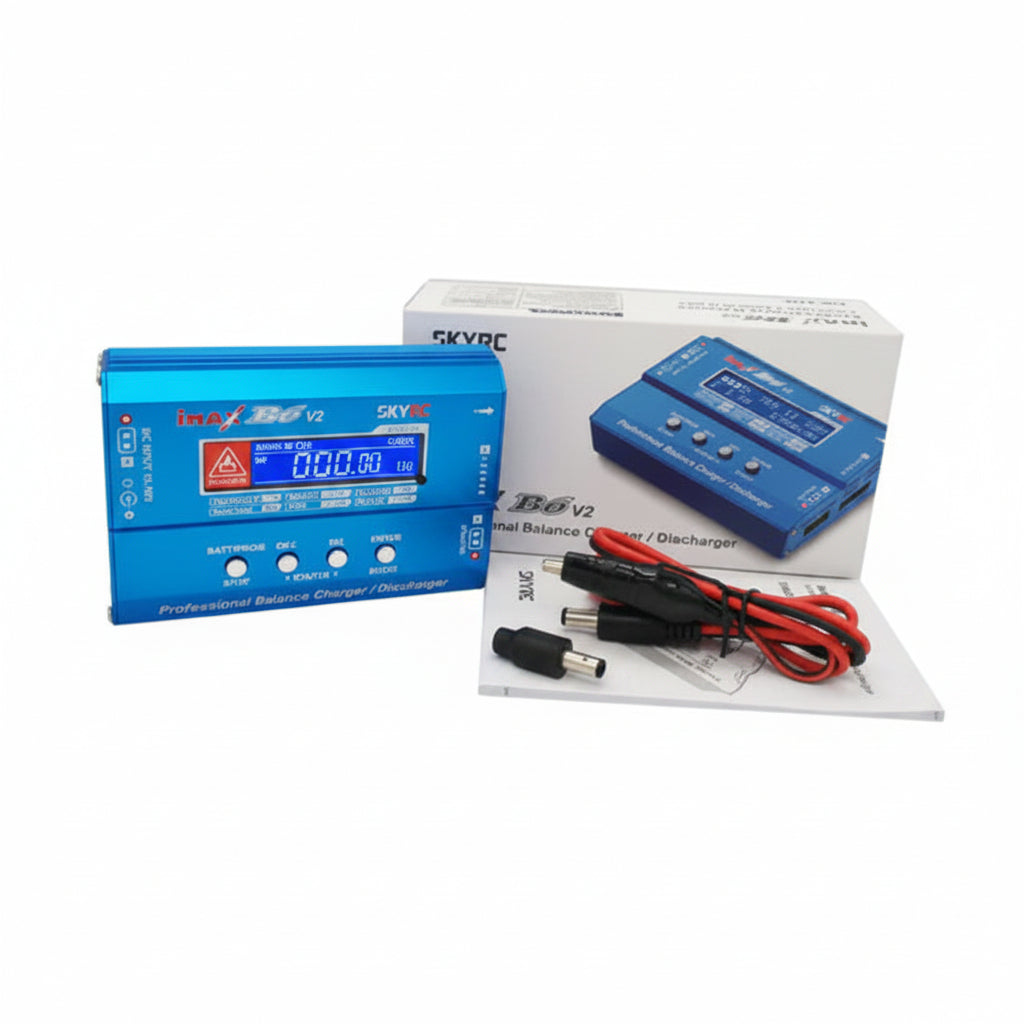

iMAX B6 V2 Mini 1-6 Cells Battery Balance Charger

Ultra-Compact 60W Architecture: Delivers up to 60W charging power with up to 6A charging current in a ultra-portable footprint optimized for field and bench charging.

1S to 6S Multi-Cell Compatibility: Supports balance charging for 1-cell to 6-cell (1S–6S) Lithium-Polymer (LiPo), Lithium-Ion (Li-Ion), Lithium-Iron (LiFe), and Lithium High-Voltage (LiHV) battery packs.

Advanced Multi-Chemistry Support: Comprehensive charging, discharging, and storage algorithms for LiPo, LiFe, Li-Ion, LiHV, NiMH, NiCd, and Lead-Acid (Pb) battery chemistries.

AGPB & Cold Charge Modes: Features specialized AGM charging and Cold Charge modes specifically optimized for charging lead-acid batteries in low-temperature ambient conditions.

Built-in Battery Internal Resistance Meter: Integrated diagnostic tools allow real-time monitoring of total pack resistance and individual cell health to identify degraded cells early.

DC Power Supply Functionality: Functions as a adjustable DC power supply unit capable of outputting 5V–26V DC (up to 60W max) for powering auxiliary field equipment and bench testing.

Housing & Casing Style: Heavy-duty aluminum alloy housing designed with internal heatsink cooling to maximize heat dissipation during continuous operation.

Contact & Terminal Style: 4mm banana jack main output ports, 2S–6S JST-XH balance pin socket array, DC 11–18V input jack, temperature sensor port, and Micro-USB interface.

Technical Specifications:

Input Voltage: DC 11V – 18V.

Circuit Power: Max Charge Power 60W / Max Discharge Power 5W.

Charge Current Range: 0.1A – 6.0A.

Discharge Current Range: 0.1A – 1A.

Balance Current: 300mA per cell.

DC Power Output: 5V–26V / Max 60W.

Supported Cell Counts: LiPo/LiFe/Li-Ion/LiHV (1-6S), NiMH/NiCd (1-15S), Pb (2V– 20V).

Color: Metallic Blue.

Usage Advice: Requires an external DC power source (11V –18V). Always connect both the main output battery lead and the JST-XH balance connector when balance charging multi-cell packs.

Maintenance: Keep side ventilation slots free of dust, lint, or debris. Store in a dry protective pouch when taking into field operations.

Essential Ultra-Portable Field Charger: Position as the go-to compact balance charger and diagnostic station for FPV drone racers, RC pilots, and mobile field technicians needing high power density in a pocket-friendly size.

Highlight LiHV Support & Adjustable DC Supply: Emphasize the upgraded LiHV battery support alongside its dual capability to act as an adjustable benchtop DC power source.

Recommended Cross-Sell Add-ons: Pair with iMAX B6 80W XT60 LiPo Battery Balance Charger, SKYRC iMAX B6AC V2 Professional Balance Charger/Discharger, E430 2S-4S LiPo / LiFe Battery Charger, and iMAX B6 80W 6A XT60 LiPo Battery Balance Charger.

Featured Collection Star: Display prominently on your SkyRC Charger/Discharger & Accessories collection page under ultra-compact travel balance stations.
